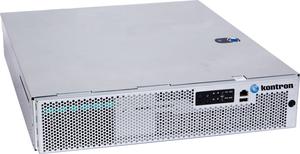

CG2300 Carrier Grade Server - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CG2300 Carrier Grade Server
- Manufacturer:
- Kontron
- Description:
- Carrier Grade Server
- Availability:
- Available: Submit request for datasheets and more information.
The Kontron CG2300 carrier grade communication rack mount server will support Dual Intel Xeon E5-2600 v3 16-Core Series (32C, 64T per 2S E5 system).
Telecom, network and broadcast equipment vendors seeking new high performance system level designs will appreciate the boost in dual-socket, 16-core processing power, complemented by an optimized I/O and storage feature set, with either dual redundant AC or DC power options.
This 20 deep ruggedized server is built to meet NEBS level-3 compliance and is backed by an extended lifecycle.
Specifications
- Dual Intel Xeon E5-2600 v3 16-Core Series (32C, 64T per 2S E5 system)
- 16 slot, 8 channel support of DDR4 RDIMM/LRDIMM;
- Supports 2048GB maximum (with 128GB DIMM)
- Optimized for PCI-E IO card implementation with PCI-E riser and LP card support;
- Hot-Swap 2.5 SAS HDDs / SATA SSDs
- Hot swap, redundant fans
- Integrated BMC (iBMC) with advanced options
- Front panel: 1 serial, 1 USB 2.0
- Rear panel: 2 USB 2.0, 2x USB 3.0, 1 onboard management NIC port
- Dual rear GbE NIC ports
Datasheets
CG2300 Datasheet
[ kontron_cg2300_ds.pdf, 1.37 mb, Apr 9, 2015 ]
Manuals
CG2300 Installation and Maintenance Guide
Installation and Maintenance Guide v1.3
This manual is for trained system technicians who are responsible for assembling/integrating systems, configuring hardware,troubleshooting, upgrading and maintaining this server. This document provides a brief overview of the features of the systemfollowed by a list of accessories or other components available for purchase, instructions for how to add or replace componentsin the CG2300 server, and troubleshooting information.
[ cg2300_i-mguide_1-3.pdf, 7.32 mb, Apr 20, 2016 ]
Tech Spec Sheet
Tech Specs KISS
[ tech-specs-kiss.pdf, 0.51 mb, Feb 29, 2016 ]
