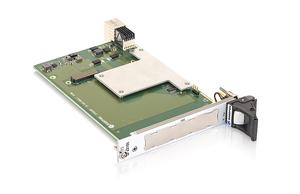

CPS3105 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CPS3105
- Manufacturer:
- Kontron
- Description:
- 3U CPCI-S.0 XMC Carrier
- Availability:
- Available: Submit request for datasheets and more information.
The CPS3105 is equipped with a dedicated PCI Express Switch between the onboard XMC connector and the CPCI-S.0 system connector providing two advantages. First, it decouples and buffers the PCI Express signals and restores signal integrity. Second, it is able to convert one x4 PCI Express 3.0 data stream from the system side into one x8 PCI Express 2.1 data stream to the XMC side. Thus, the maximum data bandwidth can be provided to commonly available XMC modules based on PCI Express 2.1.
Specifications
- Cost-effective carrier board for a wide range of applications
- XMCs up to x8 PCI Express 2.1 supported
- Service-friendly design - hot swap capability and power LED
- Version for the extended temperature range E2
(-40�C up to +85�C)
Datasheets
CPS3105 Datasheet
[ datasheet_cps3105.pdf, 0.75 mb, Oct 27, 2015 ]
Manuals
CPS3105 Manual [restrictions apply]
[ 1055-0548_10_sk-man-cps3105.pdf, 0.54 mb, Nov 27, 2013 ]
CPS3105 Introduction Manual
[ 1055-0548_10_sk-man-cps3105_introduction.pdf, 0.51 mb, Nov 27, 2013 ]
