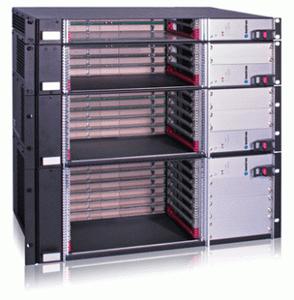

CP-XL Series - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP-XL Series
- Manufacturer:
- Kontron
- Description:
- 1U, 2U, 3U and 4U cPCI racks with H.110 option
- Availability:
- Available: Submit request for datasheets and more information.
Designed for Telecom, Telephony, Network Infrastructure, or Military Equipment manufacturers, CP-XL1 (1U), CP-XL2 (2U), CP-XL3 (3U), and CP-XL4 (4U) have already been delivered with Kontron 6U Intel and PowerPC processors, PMC and IO boards.
Ask for your CP-XL based solution ready for field deployment right away out of the Kontron factory.
Our production teams are prepared to take over the CPCI boards integration and your software installation on request.
Specifications
- For rugged and cost effective solutions
- Efficient side-to-side cooling
- Power Supplies: load sharing and hot swap
Features
| 19' Rack Mounting | CAbinet / ETSI mount |
| Backplanes | 2, 4, 6, 8 Slot for 6U CPCI |
| Cooling | Left to right fan |
| Depth | 275 mm |
| Drives | CPU onboard only |
| H110 | selectable option |
| Housing | 84 HP / 1, 2, 3, or 4 U |
| Packet Switched Backplane | option |
| Power Supply | up to 3x P47 series |
Datasheets
Datasheet CP-XL Series
[ datasheet_cp-xl-series.pdf, 1.36 mb, Nov 11, 2014 ]
Manuals
CP3-SVE-P200AC
[ 24139_pd05_01_sk-man-cpsu-cp3_p200ac.pdf, 0.13 mb, Nov 27, 2013 ]
Variants
| CP3-SVE-P200AC CP3-SVE-P200AC |  | Positronic47 AC Power Supply Unit for 3U | more |
