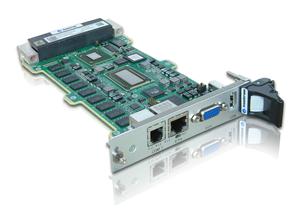

VX3035 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- VX3035
- Manufacturer:
- Kontron
- Description:
- 3U VPX 2nd Generation Intel Core, i7 Single Board Computer
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- Intel Core, i7-2655LE 2.2GHz, four Threads, Intel HD Graphics
- VXFabric, Option for Computing Nodes
- Supporting Safety Critical Applications
- Long Term Supply Program
- Turnkey Development Platforms
- Windows ES 7, Linux, VxWorks, PikeOS
Features
| CPU | Intel Core, i7 2655LE |
| Controller | Intel QM67 controller hub |
| Cooling | Standard Air-, Rugged Air- or Rugged Conduction-cooled versions |
| CPU Clock | 2.20 GHz |
| CPU L2 Cache | 4M Cache |
| Operating System | Windows Embedded Standard 7, Linux, VxWorks, PikeOS |
| Standard | VPX VITA 46, OpenVPX VITA65, VPX REDI VITA 48. |
| Graphics | High performance 3D graphics controller integrated in the processor |
| Ethernet | 3 x GbE, 2 1000BASE-BX with Intel i82580 Ethernet controller (rear), One 1000BASE-T with i82579 (front or rear, BIOS option) |
| Watchdog | FPGA-based, timeout ranging from 1s to 510s, IRQ, Reset, dual-stage |
| DRAM | Up to 8 GB dual Channel 1333 SDRAM with ECC |
| Fabric Interface Support | Support of Kontron VXFabric, |
Datasheets
VX3035 Datasheet
[ datasheet_vx3035.pdf, 1.15 mb, Nov 16, 2015 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ komsa-supportbrochure-2015v.pdf, 0.98 mb, May 19, 2015 ]
Manuals
VX3035 User's Guide [restrictions apply]
[ cadta95-4e-vx3035-ug.pdf, 3.44 mb, Nov 27, 2013 ]
VX3035-PBIT User's Guide [restrictions apply]
[ sddtg08-2e-vx3035-pbit.pdf, 0.4 mb, Nov 27, 2013 ]
VX3035 - AMI BIOS User Reference Manual [restrictions apply]
[ sddtf97-9e-vx3035-bios.pdf, 5.89 mb, May 27, 2016 ]
EZ3-VX3035 Quick Start [restrictions apply]
[ sddtf95-ez3-vx3035.pdf, 0.15 mb, Nov 27, 2013 ]
EZ3-VX3035 Getting Started [restrictions apply]
[ sddtg05-ez3-vx3035.pdf, 0.6 mb, Nov 27, 2013 ]
VX3035 Hardware API Manual [restrictions apply]
Certification artifact for VX3035. This document lists the VX3035 chipset registers settings and meaning, post BIOS initialization. Can also be used for PBIT and prelaunch tests in safety critical hypervisors and OSes.
[ vx3035-hwapi-ft.dt.942-4e.pdf, 1.53 mb, Nov 27, 2013 ]
PB-VX3-4xx -3U-VPX Rear Transition Module User's Guide [restrictions apply]
[ cadtb03-0e-pb-vx3-4xx.pdf, 1.07 mb, Nov 27, 2013 ]
Whitepapers
VXFabric White Paper [restrictions apply]
[ whitepaper_en_vxfabric-v2-final.pdf, 5.6 mb, Nov 27, 2013 ]
Accessories
| Nand Flash Modules |  | FDM-SATA | more |
