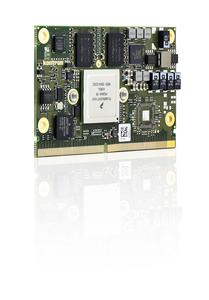

SMARC-sAMX6i - Kontron
Call for Price / Availability 888.528.9233
- Part:
- SMARC-sAMX6i
- Manufacturer:
- Kontron
- Description:
- SMARC Module based on
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- Based on Freescale i.MX 6 Family
- SoC scalable from Solo Core, dual core up to quad Core
- ARM specific featureset incl. PCIe and graphic
Features
| Compliance | SMARC - Smart Mobile Architecture by SGET - small size |
| Dimensions (H x W x D) | 82mm x 50mm |
| CPU | Freescale i.MX 6 Single, Dual and Quad Core ARM Cortex-A9 |
| Main Memory | up to 2GB DDR3 memory down |
| Graphics Controller | Dual Display HD 1080p Decode/Encode 2D/3D acceleration |
| Ethernet Controller | integrated |
| Ethernet | 10/100/1000 MBit Ethernet |
| SATA | 1x SATA (dual/quad core) - (solo) |
| Flash Onboard | 2-64GB eMMC |
| PCI Express / PCI support | 3x PCIe x1 |
| Panel signal | Parallel LCD 18/24 bit LVDS Single Channel 18/24bit HDMI |
| USB | 3x USB 2.0 (one OTG) |
| Serial | 2x RX/TX (Ser1/3) 2x UART (Ser0/2) |
| Interface | 12x GPIO, SDIO, 5x I_C, 2x I_S, 2x SPI, SPDIF, WDT, 2x CAN Camera Interface (PCAM, CSI) |
| Operating System | Linux, Android, WEC7 |
| Power Supply | 3V - 5.25V Operates directly from single level Lithium Ion cells or fixed 3.3V or 5V power supplies |
| Power Consumption | Typ. 5W |
| Power Management | Battery and System Management |
| Temperature | Operation: -40� to 85�C, Storage: -40� to 85�C |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
Datasheets
SMARC-sAMX6i (Release Candidate)�
[ datasheet_smarc-samx6i.pdf, 1.57 mb, Sep 10, 2015 ]
Manuals
User's Guide
[ smx6m110.pdf, 0.83 mb, Jul 3, 2015 ]
Whitepapers
SMARC specification folder (Release Candidate)�
[ kontron_smarc_folder_feb2013.pdf, 1.83 mb, Nov 27, 2013 ]
Tech Spec Sheet
Tech Specs SMARC
[ tech-spec_smarc.pdf, 0.45 mb, Feb 29, 2016 ]
Variants
| SMARC,-sAMX6i 0.8 512/4GB 51003-0540-08-1 |  | SMARC, with Freescale i.MX6 Solo, 800MHz single core, 512MB DRAM memory down, 4GB onboard Flash, industrial temperature, no SATA support | � |
| SMARC,-sAMX6i 2x0.8 1/4GB 51003-1040-08-2 | | SMARC, with Freescale i.MX6, 800MHz dual core, 1GB DRAM memory down, 4GB onboard Flash, industrial temperature, with SATA support | � |
| SMARC,-sAMX6i 4x0.8 1/4GB 51003-1040-08-4 | | SMARC, with Freescale i.MX6, 800MHz quad core, 1GB DRAM memory down, 4GB onboard Flash, industrial temperature, with SATA support | � |
Accessories
| SMARC Starterkit 51100-0000-00-S |  | The SMARC Starterkit with SMARC Eval Carrier is equipped for express evaluation purposes. | more |
| SMARC Mounting Kit 51117-0000-00-0 | | SMARC Mounting Kit | � |
| HSP SMARC,-sAMX6 51003-0000-99-1 | | Heatspreader for SMARC,-sAMX6 | � |
Warranty
10-Day Inspection Period: If the SMARC-sAMX6i purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.
30-Day Warranty: The 30-Day warranty for SMARC-sAMX6i covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:
1. Repair
2. Replacement
3. Refund
** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**
All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.
Warranty Options:
Our Standard Warranty: Warranty may vary dependent on product and manufacturer.
No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.
Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
