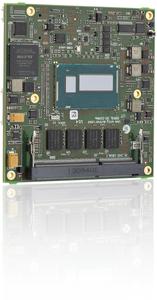

COMe-cHL6 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- COMe-cHL6
- Manufacturer:
- Kontron
- Description:
- COM Express compact Type 6
- Availability:
- Available: Submit request for datasheets and more information.
Kontron is extending the usage model of the 4th generation Intel Core processor technology to compact and rugged fanless options with the launch of the Kontron COMe-cHL6 COM Express compact Computer-on-Modules. The new modules in the compact form factor (95 x 95 mm) are equipped with the ULT versions of the 4th generation Intel Core, i7/i5/i3 Celeron processor, formerly codenamed ��Haswell-U�� . U stands for ultra-low TDP which limits the power consumption of these new Computer-on-Modules down to options that are tailored for fanless and fully enclosed system designs. The modules also cater for the most robust and maintenance-free system designs in the high performance class of embedded systems, and consequently help engineers to reduce the systems�� bill of materials as well as the customers�� total cost of ownership.
Application areas can be found in all the performance-hungry but power-restricted, multi-touch multi-display systems such as HMIs in automation, medical imaging, digital signage and point of sale as well as surveillance and security. The modules also address the fast-growing, industrial-grade tablet PC market for various industries including logistics, retail and manufacturing.
The Kontron COMe-cHL6 COM Express compact Computer-on-Modules with pin-out type 6 are highly scalable to cover a broad application range from high-end 1.7 GHz quad-core Intel Core, i7 processor performance to cost-optimized Intel Celeron designs. With Intel AVX2 and OpenCL 1.2 they boost floating point performance as well as parallel processing density. Up to 12 GB of energy-efficient DDR3L RAM satisfy even highest memory demands. State-of-the-art multi-display designs are enabled by three independent display outputs, executed via 2x DP++ (DisplayPort, HDMI, DVI) and 1x Dual Channel LVDS. Standard interfaces include 4x SATA 6Gbit/s ports, Gigabit Ethernet, 2x USB 3.0 ports and 8x USB 2.0.Application-specific extensions on the carrier board are connected via 4x PCIe x1 or 1x PCI x4. An additional PCIe x2 interface is possible with disabled GbE functionality. The wide-range (8.5 - 20V) power supply and MARS smart battery support simplify mobile and battery-powered designs.
�
Specifications
- Intel 4th Generation Core, i7/i5/i3/Celeron ULT Series
- Up to 12GB DDR3L with 1x Memory Down + 1x SODIMM
- 3 independent display outputs (2x DP++ & Dual Channel LVDS)
Features
| Compliance | COM Express compact, Pin-out Type 6 |
| Dimensions (H x W x D) | 95 x 95 mm |
| CPU | Intel Core, i7-4650U (2x1.70GHz, GT3, 15W) Intel Core, i5-4300U (2x1.90GHz, GT2, 15W) Intel Core, i3-4010U (2x1.70GHz, GT2, 15W) Intel Celeron 2980U (2x1.60GHz, GT1, 15W) |
| Chipset | Intel 8-Series LynxPoint-LP integrated in CPU |
| Main Memory | 1x DDR3L-1600 SO-DIMM up to 8GB 1x DDR3L-1600 memory down up to 4GB |
| Graphics Controller | Intel HD5000 (GT3) Intel HD4400 (GT2) Intel HD Graphics (GT1) |
| Ethernet Controller | Intel I218LM |
| Ethernet | 10/100/1000 MBit Ethernet |
| Hard Disk | 4x SATA 6Gb/s |
| Flash Onboard | - |
| PCI Express / PCI support | 4x PCIe Gen 2.0 |
| Panel signal | DDI1: DP++ DDI2: DP++ DDI3: - VGA: - LVDS: Dual Channel 18/24bit |
| USB | 2x USB 3.0 6x USB 2.0 |
| Serial | 2x serial interface (RX/TX only) |
| Audio | Intel High Definition Audio |
| Common Features | SPI, LPC, SMB, Fast I_C, Staged Watchdog, RTC, MARS |
| BIOS | Phoenix Secure Core UEFI |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
| Options | 1x PCIe x4 additional w/o onboard LAN eDP instead of LVDS vPRO (AMT/TXT/AES Support) |
| Power Management | ACPI 4.0, S5 Eco |
| Power Supply | 8.5V �� 20V Wide Range, Single Supply Power |
| Special Features | POSCAP capacitors Trusted Platfom Module TPM 1.2 4k Resolutions |
| Operating System | Windows 8, Windows 7, WE8S, WEI8, WES7, Linux, VxWorks |
| Temperature | Commercial temperature: # 0�C to +60�C operating, -30�C to +85�C non-operating # -25�C to +75�C operating, -30�C to +85�C non-operating |
| Supported Modules | 36014-xxxx-xx-x: COMe-cHL6, commercial temperature 36014-xxxx-xx-xEXT: COMe-cHL6, extended temperature |
Datasheets
Datasheet COMe-cHL6
[ datasheet_come-chl6.pdf, 1.06 mb, Sep 4, 2015 ]
Manuals
User's Guide COMe-cHL6
[ chl6m110.pdf, 1.88 mb, Jan 16, 2015 ]
Tech Spec Sheet
COM EXPRESS compact
[ tech-spec_comexpress-compact.pdf, 0.52 mb, Feb 29, 2016 ]
Variants
| COMe-cHL6 i7-4650U 4GB E1 36014-4000-17-7EXT |  | COM Express compact pin-out type 6 Computer-on-Module with Intel Core, i7-4650U, 4GB memory down, extended temperature version | � |
| COMe-cHL6 i7-4650U 4GB 36014-4000-17-7 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Core, i7-4650U, 4GB memory down | � |
| COMe-cHL6 i7-4650U 36014-0000-17-7 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Core, i7-4650U | � |
| COMe-cHL6 i5-4300U 4GB 36014-4000-19-5 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Core, i5-4300U, 4GB memory down | � |
| COMe-cHL6 i5-4300U 36014-0000-19-5 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Core, i5-4300U | � |
| COMe-cHL6 i3-4010U 4GB 36014-4000-17-3 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Core, i3-4010U, 4GB memory down | � |
| COMe-cHL6 i3-4010U 36014-0000-17-3 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Core, i3-4010U | � |
| COMe-cHL6 2980U 36014-0000-16-1 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Celeron 2980U | � |
Accessories
| COMe Eval Carrier T6 38106-0000-00-0 |  | COM Express Evaluation Carrier Type 6 | more |
| COMe Ref.Carrier T6 38114-0000-00-0 |  | COM Express Reference Carrier Type 6 | more |
| HSP COMe-cHL6 thread 36014-0000-99-0 | | Heatspreader for COMe-cHL6, threaded mounting holes | � |
| HSP COMe-cHL6 through 36014-0000-99-1 | | Heatspreader for COMe-cHL6, through holes | � |
| COMe Active Uni Cooler (w/o HSP) 36099-0000-99-0 | | COM Express Universal Active Cooler for Heatspreader Mounting (87x78x14.3mm) (for CPU's | � |
| COMe Passive Uni Cooler (w/o HSP) 36099-0000-99-1 | | COM Express Universal Passive Cooler for Heatspreader Mounting (87x78x14.3mm) (for CPU's | � |
| KAB-HSP 200mm 96079-0000-00-0 | | Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 200mm | � |
| KAB-HSP 40mm 96079-0000-00-2 | | Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 40mm | � |
| COMe Mount Kit 5mm 1set 38017-0000-00-5 | | COM Express Mounting Kit 5mm 1set for threaded HSP and Cooling Solutions | � |
| COMe Mount Kit 5mm 100sets 38017-0100-00-5 | | COM Express Mounting Kit 5mm 100 sets | � |
| COMe Mount KIT 8mm 1set 38017-0000-00-0 | | COM Express Mounting Kit 8mm 1set for threaded HSP and Cooling Solutions | � |
| COMe Mount Kit 8mm 100sets 38017-0100-00-0 | | COM Express Mounting Kit 8mm 100sets | � |
| DDR3L-1600 SODIMM 2GB 97015-2048-16-1 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800 | � |
| DDR3L-1600 SODIMM 4GB 97015-4096-16-1 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800 | � |
| DDR3L-1600 SODIMM 8GB 97015-8192-16-1 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800 | � |
| DDR3L-1600 SODIMM 2GB E2 97015-2048-16-3 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C | � |
| DDR3L-1600 SODIMM 4GB E2 97015-4096-16-3 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C | � |
| DDR3L-1600 SODIMM 8GB E2 97015-8192-16-3 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C | � |
