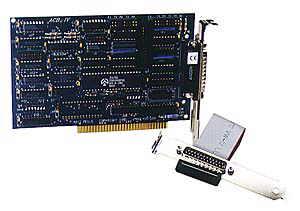

ACB4 - Kontron
Test Report Included for ACB4
Part:
ACB4
Manufacturer:
Kontron
Description:
ISA RS-422/485/530, T1 & fractional T1, 85230 SCC
Availability:
Available: Submit request for datasheets and more information.

Specifications

  • RS-422/530/485 communications
  • Two channels of SYNC/ASYNC communications using 85230-8 SCC chip
  • Full modem control RS530
  • Selectable address/IRQ
  • DMA to 880K bits per second
  • T1 and F-T1 pipeline interface
  • S/W programmable baud rate
  • Supports TD, RD, RTS, CTS, DSR, DCD, DTR, TXC, RXC, LL, RL, TM signals

Datasheets

ACB4 Datasheet - 1029
[ 1029.pdf, 0.14 mb, Nov 27, 2013 ]

Manuals

ACB4 Manual
[ 00750104.pdf, 0.83 mb, Nov 27, 2013 ]

Warranty

10-Day Inspection Period: If the ACB4 purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.

30-Day Warranty: The 30-Day warranty for ACB4 covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:

1. Repair

2. Replacement

3. Refund

** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**

All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.

Warranty Options:

Our Standard Warranty: Warranty may vary dependent on product and manufacturer.

No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.

Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
