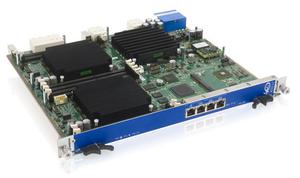

AT8242 - Kontron

Part:

AT8242

Manufacturer:

Kontron

Description:

40G ATCA 64-Core MIPS64 Packet Processor Blade

Availability:

Available: Submit request for datasheets and more information.

The ATCA 64-Core Packet Processor AT8242 offers high compute performance and service features for demanding 4G/LTE Evolved Packet Core Gateways, DPI, IPTV and content delivery platforms, Video Optimization, and GPON and EPON elements.

It offers a superior performance per Watt, power optimization, embedded virtualization, and a multitude of hardware acceleration features, including DPI acceleration with integrated HFA (RegEx Engine), TCP and ROHC, packet processing, compression, RAID 5/5 and de-dup, and multi-core scaling.

The Cavium Networks OCTEON II processor also combines over 85 L3-L7 application acceleration engines, virtualization features, 100Gbps of connectivity, and a new Real Time Power Optimizer that dynamically adjusts power depending upon the application level processing requirement.

Clients may consider using the AT8242 40G packet processor blade in combination with the new Kontron OM9141-40G and OM9141-10G ATCA 14-slot platforms, featuring market-leading switch management software and up to four times the I/O switching bandwidth than the previous platform generation.

The Kontron AT8242 is designed for versatility and can be used in many core and edge network applications, particularly Packet Data Network Gateways (PGW), Serving Gateways (SGW) and Mobility Management Entity (MME) network elements found in the 4G LTE Evolved Packet Core (EPC). Growth in mobile data traffic networks will require more efficient and powerful deterministic processing of applications such as packet processing, deep packet content inspection (RegEx), application-aware switching and routing, parsing, IPv6/IPv4 forwarding, compression and decompression, classification, and Quality-of-Service (QoS) at 40Gbps wire-speed.

Specifications

Warranty

10-Day Inspection Period: If the AT8242 purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.

30-Day Warranty: The 30-Day warranty for AT8242 covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:

1. Repair

2. Replacement

3. Refund

** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**

All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.

Warranty Options:

Our Standard Warranty: Warranty may vary dependent on product and manufacturer.

No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.

Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
