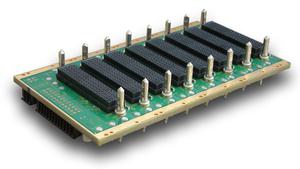

3U VPX Centralized Backplanes - Kontron
Call for Price / Availability 888.528.9233
- Part:
- 3U VPX Centralized Backplanes
- Manufacturer:
- Kontron
- Description:
- 3U 8-Slot Centralized Technology
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- Compliant to VITA 46.0 Baseline Application
- Supports VITA 46.4 PCI Express
- Supports VITA 46.10 with RTM Connectors
- Operating Temperatures: -40 to +85C
Features
| Power connector | M4 screws and ATX (24-pole, 4-pole) connectors for power entry |
| Management | System management interface on the backplane (I2C1,I2C2). |
| Standard | VITA 46.0-2007 (VPX Baseline Standard), VITA 46.4-VDSTU (PCI Express on VPX Fabric Connector), VITA 46.10-2009 (Rear Transition Module for VPX) |
| Temperature | Operating: -40C to +85C / Storage: -55C to +85C |
| Dimensions (H x W x D) | PCB Size = H: 128.5 mm - W: 120.7 mm - T: 5.4 mm |
Datasheets
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ komsa-supportbrochure-2015v.pdf, 0.98 mb, May 19, 2015 ]
3U VPX Centralized Backplanes-DS
[ 3u-8slot-vpx-backplanes.pdf, 1.81 mb, Nov 27, 2013 ]
