KTHM65/mITX - Kontron
Call for Price / Availability 888.528.9233
- Part:
- KTHM65/mITX
- Manufacturer:
- Kontron
- Description:

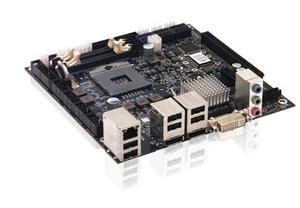

- KTHM65/mITX embedded & longterm available Mini ITX board with Intel HM65 chipset for an optimized price-performance ratio
- Availability:
- Available: Submit request for datasheets and more information.
Last but not least: As always the KT embedded motherboards offer more PCB layers than conventional motherboards designed for the consumer market, in order to achieve excellent signal qualities and optimize electromagnetic compatibility.
Specifications
- 2nd Generation Intel i7-,i5,-i3 2Core and 4Core CPUs & Intel HM65 Chipset
- Long term available embedded Mini ITX-Motherboard (up to 7 years after release)
- High graphics performance incl. 2 x Display Port, LVDS & DVI
- 6 x SATA (incl. 2 x SATA III), 12 x USB 2.0, 1 x Intel GB LAN
- mSATA interface highspeed compact SSD storage
- ATX and single 12V power supply
- Gen 2.0 PCIe x16 & PCIe x1
- Unique multipurpose KT Feature Connector
Features
| Form Factor | Mini-ITX |
| Dimensions (H x W x D) | 6.7� x 6.7� (17,0 cm x 17,0 cm) |
| CPU | Supports: Intel i7-,i5,-i3 2 Core and 4 Core CPUs; Intel Celeron Processor B810 Intel Celeron Processor B810, 1.60GHz, dual Core, 35W Intel Core i7-2710QE Processor, 2.10GHz, quad Core, 45W Intel Core i3-2330E Processor, 2.20GHz, dual Core, 35W Intel Core i5-2510E Processor, 2.50GHz, dual Core, 35W |
| Chipset | Intel HM65 |
| Main Memory | Up to 16 GB DDR3 (max. 2x 8 GB) |
| Front Side Bus | 5 GT/s point-to-point DMI 2.0 interface to PCH Four lanes in each direction |
| Graphics Controller | Intel HD Graphics 3000 integrated |
| Graphics | 2 x Display port 1x DVI-I 1x LVDS, HDMI via Adapter (1 x PCIe x 16 PCI slot) |
| Ethernet Controller | 1x Intel Lewisville 82579LM |
| Ethernet | 1 x Intel GB LAN |
| Hard Disk | 6 x SATA (4x SATA150/300 and 2x SATA600) |
| Parallel Port | LPT in a FFC connector |
| Flash Onboard | mSATA |
| PCI | n/a |
| PCI Express / PCI support | 1x PCIe x16 1x PCIe x1 |
| Mini-PCI | 2 x mini PCI-Express |
| USB | 12 x USB 2.0 (6 External + 6 Internal) |
| IEEE 1394 Firewire | n/a |
| Serial | 4x RS232 |
| Rear I/O | 2x Dual USB +Displayport 1x Dual USB + Ethernet 1x DVI 1x Audio 3x |
| Audio Controller | VIA 1708B HD Audio 7.1 Mic x2 CDROM in and SPDIF |
| Keyboard | Internal PS2 Mouse/Keyboard connector |
| Special Features | DAC up to 160 GPIO TPM 1.2 KT embedded feature port with ADC ATX and single 12V power supply on Mini-ITX |
| BIOS | AMI |
| Power Management | ACPI 3.0 |
| Operation Temperature | Operating 0�C - 60�C (32�F - 140�F) |
| Operating System | WES7 32/64bit Linux VxWorks, WindRiver Linux |
| Compliance | EN 61000-4-2:2000 ESD Immunity EN55022:1998 class B Generic Emission Standard IEC 60950-1: 2005, 2nd Edition UL 60950-1 CSA C22.2 No. 60950-1 ROHS |
Datasheets
Datasheet KTHM65/mITX
[ datasheet_kthm65-mitx.pdf, 1.14 mb, Jan 13, 2016 ]
Manuals
KTHM65/mITX Users Guide
[ ktd-n0838-c_kthm65-users-guide.pdf, 3.07 mb, May 17, 2016 ]
Tech Spec Sheet
Tech Specs MINI-ITX
[ tech-spec_mini-itx.pdf, 0.52 mb, Feb 29, 2016 ]
Variants
| KTHM65/mITX 810411-4500 | | KTHM65/mITX embedded & longterm available Mini ITX board with Intel HM65 chipset for an optimized price-performance ratio | more |
| Intel Celeron B810 Processor 1044-7732 |  | Intel Celeron B810 Processor, 1.60GHz, dual Core, 2MB Cache, 35W, PGA988, Embedded | � |
| Intel Core i3-2330E Processor 1044-7726 | | Intel Core i3-2330E Processor, 2.20GHz, dual Core, 3MB Cache, 35W, FCPGA988, Embedded | � |
| Intel Core i5-2510E Processor 1044-7635 | | Intel Core i5-2510E Processor, 2.50GHz, dual Core, 3MB Cache, 35W, FCPGA988, Embedded | � |
| Intel Core i7-2710QE Processor 1044-7623 | | Intel Core i7-2710QE Processor, 2.10GHz, quad Core, 6MB Cache, 45W, FCPGA988, Embedded | � |
Accessories
| DDR3-1066 SODIMM 1GB 1060-2502 | | DDR3, 1GB, 204P, 1066MHZ, PC3-8500 SODIMM | � |
| DDR3, 1GB, 1333MHZ 1054-3780 | | DDR3, 1GB, 204P, 1333MHZ, PC3-10600 SODIMM | � |
| DDR3-1600 SODIMM 1GB 1060-2505 | | DDR3, 1GB, 204P, 1600MHZ, PC3-12800 SODIMM | � |
| DDR3-1066 SODIMM 2GB 1060-2508 | | DDR3, 2GB, 204P, 1066MHZ, PC3-8500 SODIMM | � |
| DDR3-1333 SODIMM 2GB 1060-2512 | | DDR3, 2GB, 204P, 1333MHZ, PC3-10600 SODIMM | � |
| DDR3, 2GB, 1600MHZ 1055-8136 | | DDR3, 2GB, 204P, 1600MHZ SODIMM | � |
| DDR3-1066 SODIMM 4GB 1060-2510 | | DDR3, 4GB, 204P, 1066MHZ, PC3-8500 SODIMM | � |
| DDR3-1333 SODIMM 4GB 1060-2514 | | DDR3, 4GB, 204P, 1333MHZ, PC3-10600 SODIMM | � |
| DDR3-1600 SODIMM 8GB 1060-2504 | | DDR3, 8GB, 204P, 1600MHZ, PC3-12800 SODIMM | � |
| Accessory kit for KTQM67, KTQM77 826598 | | 4x COM cable (2.54mm, 100mm), 2x FFC 100mm 32pin cable, 1x LPT Module, 1x 6-Pin to PS2-Kbd-Mse cable, 1x Front Panel Open-End cable, 1x Audio Open-End calbe, 1x LVDS Open-End cable, 6x SATA cable (500mm), 2x IEEE1394 Bracket, 4x Cable+Bracket (USB, 10pol | � |
| Active Cooler for KTQM67 1044-9447 |  | Active Cooler for socket G2 (rPGA 988B) ZIF socket CPU | more |
| Active Cooler for KTQM67 33mm longlife 1052-6345 | | Active Cooler for KTQM67 for socket G2 (rPGA 988B) 33mm longlife | � |
| COM port Cable, 100mm 821017 |  | COM port Cable, 2.54mm, 100mm long | more |
| COM port Cable, 200mm 821016 | | COM port cable, 2.54mm, 200mm long | � |
| SATA Cable 500mm 821035 |  | SATA Cable 500mm long | more |
| Front Panel Open-End Cable 821042 |  | Front Panel Open-End Cable | more |
| Audio Open-End Cable 821043 |  | Audio Open-End Cable | more |
| AUO G121SN01 Cable 821518 | | Cable for AUO G121SN01 | more |
| LCD Cable for LG.Philips LM150X08 821520 | | LCD cable for LG.Philips LM150X08 | � |
| LVDS Open-End Cable 821515 | | LVDS Open-End Cable 540mm | more |
| LCD LVDS Cable for JAE FI-S20 1027-2631 | | LCD LVDS Cable for JAE FI-S20 w. pull tab (i.e. for Sharp LQ104S1LG21) | � |
| LVDS 1:1 Cable 1027-3591 | | LVDS 1:1 cable, 2x 40 pin connector, 405mm | � |
| Cable COM2 100mm Bracket 821036 | | Cable COM2 100mm Bracket | more |
| DP to VGA Adapter 1045-5779 | | DP to VGA Adapter | � |
| DP to HDMI Adapter 1045-5781 | | DP to HDMI Adapter | � |
| DVI-CRT Adapter 822001 | | DVI-CRT adapter | � |
| DP to DVI Adapter 1045-5780 | | DP to DVI Adapter | � |
| LDI (Large Display Interface) Evaluation Kit 820971 |  | LDI Evaluation Kit contains of:820975 LDI module,821521 Evaluation Cable Kit and1027-3591 LVDS Cable 2x40p conn 405 mm | more |
| LVDS Connector for cable 910000005 |  | LVDS Connector for cable | more |
