pITX-E38 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- pITX-E38
- Manufacturer:
- Kontron
- Description:
- "Ultrasmall 2.5"" Pico-ITX board with Intel Atom, E38XX System on Chip (SoC)"
- Availability:
- Available: Submit request for datasheets and more information.
The�Pico-ITX with long-term availability in the smallest embedded motherboard form factor (2.5�) is equipped with Intel Atom, SoC processor E3800 series and ready to use right out of the box. Its particulary small footprint of 100 mm � 72 mm boasts a rich feature set. Most notable are the bootable slot for micro-SD cards and the mPCIe slot, which can also be used for mSATA drives. Another important feature to highlight is that the board has been consistently designed for deployment in harsh industrial environments, which, for example, the lockable DC connectors (5V) and the extended temperature range of -25�C to +75�C (E1) demonstrate. Further features include two independent graphic outputs (DP + LVDS), 1x Gigabit Ethernet, 1x USB 3.0 and 3x USB 2.0.
Specifications
- Intel Atom, E38xx SoC (1, 2 or 4 cores), TDP: 5-10W
- SO-DIMM Socket DDR3L-1333 Memory (up to 8GB)
- Intel Gen7 Graphics, OpenGL 3.0, OpenCL 1.2, DX11, H.264, MPEG2, MCV, VC-1, VP8
- LVDS 24Bit dual channel and Display Port 1.1a
- 10/100/1000MBit RJ45 Ethernet LAN, SATA, mSATA or mPCIe in mPCIe connector
- USB 2.0 & USB 3.0 ports, Serial ports 16550 UART, GPIOs
- Bootable high capacity micro SD Card slot
- Lockable DC power connector (5V)
- Extended temperature operating from -25�C to +75�C (E1)
Features
| Form Factor | Pico-ITX |
| Dimensions (H x W x D) | 100 x 72 mm |
| CPU | Intel Atom, E3845 (4x1.91GHz, 10W) Intel Atom, E3826 (2x1.46GHz, 7W) Intel Atom, E3815 (1x1.46GHz, 5W) |
| Chipset | - |
| Main Memory | 1x SO-DIMM Socket supporting DDR3L-1333/1066 (up to 8 GB) |
| Graphics | 2x independent graphic outputs 1x DP 1.1a, up to 2560x1600 1x LVDS dual channel 24bit, up to 1920x1200 |
| Ethernet | 1x RJ45 10/100/100 Mb/s Ethernet |
| Hard Disk | 1x microSD card slot (SDXC) |
| SATA | 1x SATA 2.0 1x mSATA shared with mPCIe |
| PCI Express / PCI support | 1x mPCIe 2.0 port (x1 lane) |
| USB | 3x USB 2.0 1x USB2.0/3.0 (2 on front I/O, 2 internal) |
| Serial | 2x Serial ports UART 16550 (3v3 digital inputs/outputs) |
| Audio | HD Analog audio interface (Line-In, Line-Out, Mic-In) |
| I/Os | 8x GPIOs SUSLED, SATALED |
| Operating System | WEC7, WES7, WES8, Win7, Win8, Linux, Linux Yocto VxWorks |
| Operation Temperature | -25�C to +75�C (E1) |
| Cooling | Passive (5W SoC) Active (7-10W SoC) |
| Power Supply | Single supply 5V DC Internal and external lockable connector |
| MTBF | Prediction Model: Telcordia Issue 2 Method I Case 3, 40�C and 75�C Theoretical MTBF: 414.670 / 183.190 hours @ 40�C / 75�C. |
| Compliance | EN 61000-4-2:2000 ESD Immunity EN55022:2006+A1:2007 class B Generic Emission Standard RoHS IEC 60950-1: 2005, 2nd Edition UL 60950-1, CSA C22.2 No. 60950-1 IEC 60068-2-27, 60068-2-29, 60068-2-64 |
| Power Consumption | tbd |
Datasheets
Datasheet pITX-E38 (Release Candidate)�
[ pitx-e38.pdf, 1.18 mb, May 18, 2016 ]
Manuals
KTD-N0904 pITX-E38 Users Guide
Rev. E. January 26th 2015.
[ ktd-n0904-f_pitx-e38-users-guide.pdf, 5.23 mb, May 17, 2016 ]
Tech Spec Sheet
Tech Specs PICO-ITX
[ tech-spec_pico-itx.pdf, 0.24 mb, Feb 29, 2016 ]
Variants

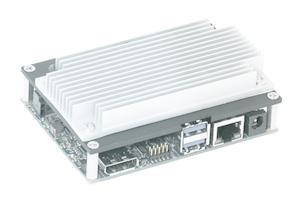

| pITX-E38 E3815 810602-4500 |  | Ultrasmall 2.5' Pico-ITX board with Intel Atom, E3815 single core System on Chip (SoC) incl. passive cooler and Battery module | � |
| pITX-E38 E3826 810601-4500 | | Ultrasmall 2.5' Pico-ITX board with Intel Atom, E3826 dual core System on Chip (SoC) incl. passive cooler and Battery module | � |

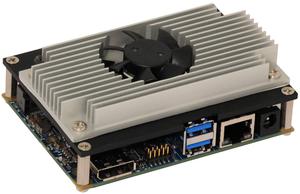

| pITX-E38 E3845 810600-4500 | | Ultrasmall 2.5' Pico-ITX board with Intel Atom, E3845 quad core System on Chip (SoC) incl. active cooler and Battery module | � |
Accessories
| DDR3-1600 SODIMM 1GB E2 1060-2526 |  | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C | � |
| DDR3-1600 SODIMM 2GB E2 1060-2528 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C | � |
| DDR3-1600 SODIMM 4GB E2 1060-2530 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C | � |
| DDR3-1600 SODIMM 8GB E2 1060-2532 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C | � |
| DDR3L-1600 SODIMM 2GB 1060-2520 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800 | � |
| DDR3L-1600 SODIMM 4GB 1060-2522 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800 | � |
| DDR3L-1600 SODIMM 8GB 1060-2524 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800 | � |
| pITX-E38 Cable & Driver Kit 1056-2142 | | 1x Cable,KAB-SOUND-CMP-2, 2x Cable,KAB-USB-2, 1x Cable,KAB-SATA-1, 2x Cable, Serial 5p 20cm OE pITX-E38, 1x Cable, Power 4p 30cm OE pITX-E38, 1x Cable, GPIO 10p 20cm OE pITX-E38, 1x Cable Frontpanel 10p 20cm OE pITX-E38, 1x SW,Man&Driver DVD,pITX-E38 | � |
