COMe Starterkit Eval T2 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- COMe Starterkit Eval T2
- Manufacturer:
- Kontron
- Description:
- Starterkit with COMe Evaluation Carrier T2
- Availability:
- Available: Submit request for datasheets and more information.
Starterkits are complete care-free kits packaged in a single case. They give you a head start: Starterkits include an Evaluation Board which provides an easy plug-in of COM Express modules and line-up many connectors and jacks. Those complete packages include everything needed for an immediate and efficient start and evaluation: PSU, USB stick, cables and Documentation.
Please order separately your COM Express module, with Cooling Solution and memory module.
Specifications
- For COM Express Modules with Pin-out Type 2
- Includes required hard- and software for immediate start
Features
| Supported Modules | COM Express pin-out Type 2 Computer-on-Modules specialy Kontrons ETXexpress and microETXexpress COM's. COM please order separately. |
| Power Supply | Switchable ATX PSU 115V/230V~ |
| Material | USB stick with manual |
| Evaluation board | COM Express Eval Type 2 ATX form factor 305 mm x 244 mm |
| Mounting | ETXexpress mounting kit (screws and spacers) |
Datasheets
Starterkits and Evaluation Boards for COM Express, Datasheet (Release Candidate)�
Datasheet Starterkits and Evaluation Boards for COM Express.
[ datasheet_comexpress_evalboards-starterkits_web.pdf, 0.9 mb, Nov 7, 2014 ]
Whitepapers
COM Express Design Guide by PICMG, Rev. 2.0
PICMG Guidelines for designing COM Express Carrier Boards, Rev. 2.0
[ picmg_comdg_2.0-released-2013-12-06.pdf, 3.11 mb, Feb 11, 2014 ]
Variants
| Universal ETXexpress Starterkit GigE 38100-0000-00-S |  | COM Express, Starterkit Type 2 w/o module, heatspreader and memory. | � |

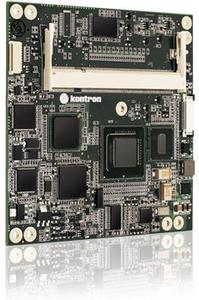

| COMe-cSP2 |  | COM Express compact Type 2 with Intel Atom, Z500 Series | more |
| COMe-cPV2 36007*/36009* |  | COM Express compact Type 2 with Intel Atom, D500/N400 Series | more |
| COMe-cPC2 |  | COM Express compact Type 2 with Intel Core,2 Duo Processors | more |
| COMe-cDC2 |  | COM Express compact Type 2 with Intel Atom, N270 | more |
| COMe-bAI# |  | COM Express basic Type 2 and 6 with 1st Generation Intel Core, Processors | more |
| COMe-bPC2 |  | COM Express basic Type 2 with Intel Core,2 Duo Processors | more |

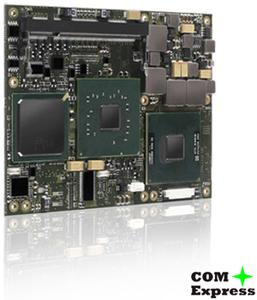

| COMe-bCD2 |  | COM Express basic Type 2 with Intel Core, Duo Processors | more |
| COMe Eval Carrier T2 38104-0000-00-1 |  | COM Express Evaluation Carrier Type 2 | more |
| COMe-cXLi2 36006* |  | COM Express compact Type 2 with Intel Atom, Z520PT | more |
Accessories
| ETXexpress-PM 370 socket 38001-0000-15-0 | | ETXexpress-PM with Intel Celeron M 370 processor (1.5 GHz), socket, 1 MB L2 Cache | more |
| ETXexpress-PM 745 socket 38001-0000-18-0 | | ETXexpress-PM with Intel Pentium M 745 processor (1.8 GHz), socket, 2 MB L2 Cache | more |
| ETXexpress-PM 760 socket 38001-0000-20-0 | | ETXexpress-PM with Intel Pentium M 760 processor (2.0 GHz, 533 MHz FSB), socket, 2MB L2 Cache | more |
| Heatspreader ETXexpress-PM, threaded 38001-0000-99-2 | | HSP-ETXexpress-PM with threaded stand off (PGA) | � |
| DDR2-800 SODIMM 512MB 97011-5120-08-0 | | DDR2 SDRAM, 200pin, Speed = 400MHz / DDR2-800 / PC2-6400 | � |
| KAB-ADAPT-LVDS 61032 |  | Evaluation Board to adapt LVDS flatpanels via JILI cable. | more |
