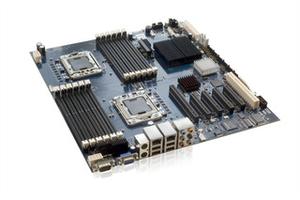

KTC5520-EATX - Kontron
Call for Price / Availability 888.528.9233
- Part:
- KTC5520-EATX
- Manufacturer:
- Kontron
- Description:
- Server Board -Single or Dual Socket with 2 Intel Xeon CPU options
- Availability:
- Available: Submit request for datasheets and more information.
integrated DDR3 memory controller; new low power platform consumption with LVDDR3L; and all the performance functionalities of the 5500 series, plus, a new hardware-based security technology called Advanced Encryption Standard - New Instructions (AES-NI).
OR
Intel Xeon 45nm quad core processor 5500 Series:
Designed with an extensive feature-set and two new Intel Xeon (5500 or 5600) series processors, this cost-effective Kontron KTC5520-EATX SSI EEB-compliant server board offers extreme performance, high I/O bandwidth and exceptional reliability �� backed by a 7-year life-cycle support program.
The Kontron KTC5520-EATX is ideal for OEMs designing a multitude of applications found in the medical imaging, simulation, storage and multimedia telecom and data center markets. As an attractive selling point for network managers is the server board��s built-in ability to be fully managed remotely. Kontron uses an Integrated Management Processor (IMP) that integrates VGA/2D, BMC, and KVM/VM over IP to support real-time access with full control by keyboard, video monitor and mouse (KVM) and virtual media (VM) by a single local computer from anywhere, at any time. IPMI 2.0 compliant using IPMI over LAN, the server board provides the OS-independent and cross-platform interface for monitoring the server system��s temperature, voltage, and fan status, among other items, and permits out-of-band management even when the main processors are not powered-in.
KVM and VM over IP allows administrators to install software from a remote drive (floppy, CD/DVD-ROM, flash device, HDD) to target servers for convenient installation.
At the same time, the KVM/VM function enables faster troubleshooting by fixing server problems from anywhere, while IPMI proactively sends alarms about environmental issues that could threaten the server��s services, therefore reducing system downtime and operation costs.
Specifications
- Cost-Effective and Long-Life Server-Class Embedded Motherboard
- New Intel Microarchitecture processor/chipset
- KVM over IP and Remote Management; IPMI v2.0
- Dual Gigabit Ethernet connectivity
- 96 GB DDR3 Registered ECC SDRAM
Datasheets
KTC5520-EATX - Single or Dual Intel Xeon Processors: Six-Core and Quad-Core Options
[ ktc5520_datasheet_1.1.pdf, 1.23 mb, Jan 7, 2015 ]
Manuals
KTC5520/EATX Technical Reference Manual
[ ktc5520-eatx-man-1.2.pdf, 6.51 mb, Nov 27, 2013 ]
Warranty
10-Day Inspection Period: If the KTC5520-EATX purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.
30-Day Warranty: The 30-Day warranty for KTC5520-EATX covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:
1. Repair
2. Replacement
3. Refund
** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**
All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.
Warranty Options:
Our Standard Warranty: Warranty may vary dependent on product and manufacturer.
No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.
Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
