AM4024-AM4024e - Kontron
Call for Price / Availability 888.528.9233
- Part:
- AM4024-AM4024e
- Manufacturer:
- Kontron
- Description:
- AdvancedMC module based on 4th Generation Intel Core processor-technology
- Availability:
- Available: Submit request for datasheets and more information.

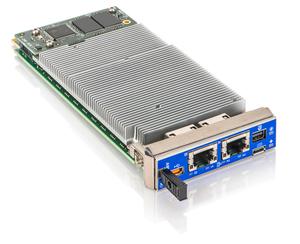

The AM4024/AM4024E is a powerful single-width AdvancedMC processor module, designed around the new 4th Generation Intel Core processor mobile platform. With up to quad-core performance the AMC module offers the ultimate in computing power and integrated graphics when utilized in MicroTCA and AdvancedTCA integrated platforms.
The AM4024/AM4024E�perfectly serves the network requirements for media server and gateway applications, as well as test and measurement solutions. By making use of Intel Media SDK, the module also offers a faster go-to-market strategy for the mobile and broadband content delivery segment in the development of�media processing and optimization applications.
The Kontron AM4024-AM4024e AdvancedMC processor modules are available now and support multiple Intel Core processor SKUs.�Software support includes RedHat Fedora, RedHat Enterprise 6.x, Windows7 64bit, Windows 2008 Server R2, WindRiver Linux PNE 5.x, and VxWorks 6.9.3.x or later.
Specifications
- AMC Processor Module, Single-module, Mid-size (Full-size on request)
- 4-core 1.8 GHz Intel Core i7-4860EQ processor with Iris Pro GPU
- 4-core 2.4 GHz Intel Core i7-4700EQ processor
- Up to 16 GByte SDRAM memory (soldered) running at 1600 MHz with ECC
- Up to 64 GByte SATA NAND Flash memory module
- Up to 8 GbE Ethernet interfaces
- Comprehensive front panel I/O interfaces
Datasheets
AM4024-AM4024e Datasheet
[ datasheet_am4024.pdf, 1.27 mb, Mar 17, 2016 ]
Manuals
AM4024_AM4024E User Manual
[ 1056-0032_20_sk-man-am4024_am4024e.pdf, 6.12 mb, Feb 8, 2016 ]
IPMI Firmware User Guide
[ 1055-7522-10_sk-man-ipmi-fw.pdf, 0.52 mb, Jun 26, 2014 ]
