- VX3030
- Manufacturer:
- Kontron
- Description:

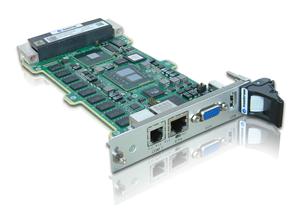

- 3U VPX Intel Core, i7 Single Board Computer
- Availability:
- Available: Submit request for datasheets and more information.
Used in Kontron 3U VPX development systems, along with 3U VPX carriers and 3U VPX Ethernet switches, the VX3030 is the ideal candidate for long term programs in search of general purpose or compact high performance parallel computing solutions.
Specifications
- Intel Dual-Core, Core i7 integrated DDR3 Memory Controller
- Two Cores with Hyperthreading (4 threads) from 1.67 to 2 GHz
- 2 to 8 GB , DDR3 1066 MHz, ECC registered SDRAM
- VXFabric(tm) (TCP/IP on PCIe) support
- Air- and Rugged Conduction-Cooled versions under 50W power
- Three Gigabit Ethernet Links to VPX Backplane
- Data plane x4 PCIe. Software configurable x4 or x1 PCIe links
- EUFI BIOS with PBIT option
Features
| CPU | Intel Core, i7 processor with integrated memory and graphics controller supporting ECC |
| PCI Express / PCI support | 2.5 GT/s gen 1 PCIe. One 4x PCIe to the backplane x4 pipes through PEX8609 Non Transparent bridge. |
| Controller | Intel Platform Controller Hub PCH QM57 (Ibex Peak-M) |
| BIOS | Two sites up to 32 MB SPI Flash |
| SRAM | Two DDR3 memory channels, 64-bit soldered ECC |
| Frontpanel | Gigabit Ethernet: One 1000BASE-T on RJ-45 connector; Graphics: VGA; USB : USB 2.0 port;Serial Port: one EIA-232 UART interface on RJ11 connector; LEDs: three control and status bicolor (red/green) LEDs |
| Rear I/O | Gigabit Ethernet: Two 1000BASE-BX and one 1000BASE-T; 4 SATA ports allowing Raid storage support; PCI Express: one x4 or four x1 PCI Express interfaces on VPX P1 (x4 Pipes Region) (Optional common PCIe reference clock feature); 2 Serial Ports: two simplified serial lines or other build options (two Rx/Tx ports on each node is default); DisplayPort: Embedded DisplayPort on VPX P2 |
| Power Supply | 12V & 5V payload power, 3.3V auxiliary management power: 50W* with 4 GB of memory, no RTM Max of 65W; * The power consumption varies depending on your product configuration (Clock settings, XMC, RTM & extra memory) |
| Verified OS | Linux: Generic Linux 2.6.x BSP to be used with various Linux distributions. Verified for RedHat 5.3 and Wind River Linux (PNE 3.x); Windows XP, Windows7; VxWorks 6 |
Datasheets
VX3030 Datasheet
[ datasheet_vx3030.pdf, 1.04 mb, Nov 11, 2015 ]
