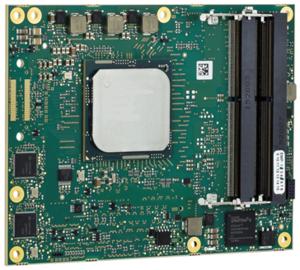

COMe-bBD6 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- COMe-bBD6
- Manufacturer:
- Kontron
- Description:
- COM Express for Communication based on Type6 basic, Computer-on-Module with Intel Xeon processor D-1500
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- Up to 32GB DDR4 ECC 2x SODIMMs
- Dual 10GbE Interfaces (option)
- x16 PCIE 3.0 + x8 PCIE2.0
Features
| CPU | Intel Xeon Processor D-1548, 8 C, 2.0 GHz, 12 MByte, 45 W, Intel Xeon Processor D-1537, 8 C, 1.7 GHz, 12 MByte, 35 W, Intel Xeon Processor D-1528, 6 C, 1.9 GHz, 9 MByte, 35 W, Intel Xeon Processor D-1527, 4 C, 2.2 GHz, 6 MByte, 35 W, Intel Xeon Processor D-1517, 4 C, 1.6 GHz, 6 MByte, 25 W, Intel Xeon Processor D-1508, 2 C, 2.2 GHz, 6 MByte, 25 W Intel Xeon D-1527, 4C, 2.2GHz, 6MB, 35W Further SKUs : 16Cores, ULV SKUs, eTemp when available from Intel |
| Main Memory | 2x DDR4 SODIMM dual channel up to 32 GByte ECC or non ECC |
| Hard Disk | 4x SATA3, 6Gb/s |
| I/Os | 16x PCIE 3.0 (4 controllers, x16, x8, x4, x1 operation) + 8x PCIE2.0 (8 controllers, x8, x4, x1 confi guration) USB 4x USB 3.0/2.0 SERIAL 2x serial interface (RX/TX only) |
| Temperature | Commercial Temperature 0 - 60 �C Industrial temperature -40 �C to +85 �C (specified SKUs only) |
| Power Supply | ATX, 8.5 V �� 20 V Wide Range, Single Supply Power |
| Operating System | Linux, Windows Server 2008 R2 SP1 / 2012, /2012 R2 Windows 7 and 8.1, VxWorks 7.x |
| Special Features | TPM 2.0, INFINEON SLB9665XQ2.0 |
| BIOS | AMI UEFI |
Datasheets
Datasheet_come_bbd6
Overview of COMe-bBD6
[ datasheet_come-bbd6_1.pdf, 2.69 mb, Apr 5, 2016 ]
Tech Spec Sheet
Tech Specs COM EXPRESS basic
[ tech-spec_comexpress-basic.pdf, 0.25 mb, Feb 29, 2016 ]
Accessories
| HSP COMe-bBD6 thread 68002-0000-99-1 |  | Heatspreader for COMe-bBD6/bBDi6R, threaded mounting holes | � |
| HSP COMe-bBD6 through 68002-0000-99-0 | | Heatspreader for COMe-bBD6/bBDi6R, through holes | � |
| HSK COMe-bBD6 active (w/o HSP) 68002-0000-99-0C05 | | Active Cooler for COMe-bBD6/bBD6iR to be mounted on HSP | � |
| HSK COMe-bBD6 passive (w/o HSP) 68002-0000-99-0C06 | | Passive Cooler for COMe-bBD6 to be mounted on HSP | � |
| KAB-HSP 200mm 96079-0000-00-0 | | Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 200mm | � |
| KAB-HSP 40mm 96079-0000-00-2 | | Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 40mm | � |
| COMe Mount Kit 5mm 1set 38017-0000-00-5 | | COM Express Mounting Kit 5mm 1set for threaded HSP and Cooling Solutions | � |
| COMe Mount Kit 5mm 100sets 38017-0100-00-5 | | COM Express Mounting Kit 5mm 100 sets | � |
| COMe Mount Kit 8mm 100sets 38017-0100-00-0 | | COM Express Mounting Kit 8mm 100sets | � |
| COMe mMount Kit 5/8mm 1set 34017-0000-00-0 | | COM Express Mounting Kit for COMe mini and 5mm/8mm Stand-Off | � |
| DDR4-2133 SODIMM 16GB 97017-1600-21-0 | | DDR4 SDRAM, 260pin, Speed= 1066MHz / DDR4-2133 / 1.2V / PC3-17100 | � |
| DDR4-2133 SODIMM 16GB E2 97017-1600-21-2 | | DDR4 SDRAM, 260pin, Speed= 1066MHz / DDR4-2133 / 1.2V / PC3-17100, industrial temperature -40�C to +85�C | � |
| DDR4-2133 SODIMM 16GB ECC 97018-1600-21-0 | | DDR4 ECC SDRAM, 260pin, Speed= 1066MHz / DDR4-2133 / 1.2V / PC3-17100 | � |
| DDR4-2133 SODIMM 16GB ECC E2 97018-1600-21-2 | | DDR4 ECC SDRAM, 260pin, Speed= 1066MHz / DDR4-2133 / 1.2V / PC3-17100, industrial temperature -40�C to +85�C | � |
| DDR4-2133 SODIMM 4GB 97017-4096-21-0 | | DDR4 SDRAM, 260pin, Speed= 1066MHz / DDR4-2133 / 1.2V / PC3-17100 | � |
| DDR4-2133 SODIMM 4GB E2 97017-4096-21-2 | | DDR4 SDRAM, 260pin, Speed= 1066MHz / DDR4-2133 / 1.2V / PC3-17100, industrial temperature -40�C to +85�C | � |
| DDR4-2133 SODIMM 4GB ECC 97018-4096-21-0 | | DDR4 ECC SDRAM, 260pin, Speed= 1066MHz / DDR4-2133 / 1.2V / PC3-17100 | � |
| DDR4-2133 SODIMM 4GB ECC E2 97018-4096-21-2 | | DDR4 ECC SDRAM, 260pin, Speed= 1066MHz / DDR4-2133 / 1.2V / PC3-17100, industrial temperature -40�C to +85�C | � |
| DDR4-2133 SODIMM 8GB E2 97017-8192-21-2 | | DDR4 SDRAM, 260pin, Speed= 1066MHz / DDR4-2133 / 1.2V / PC3-17100, industrial temperature -40�C to +85�C | � |
| DDR4-2133 SODIMM 8GB ECC E2 97018-8192-21-2 | | DDR4 ECC SDRAM, 260pin, Speed= 1066MHz / DDR4-2133 / 1.2V / PC3-17100, industrial temperature -40�C to +85�C | � |
| DDR4.2133 SODIMM 8GB 97017-8192-21-0 | | DDR4 SDRAM, 260pin, Speed= 1066MHz / DDR4-2133 / 1.2V / PC3-17100 | � |
| DDR4.2133 SODIMM 8GB ECC 97018-8192-21-0 | | DDR4 ECC SDRAM, 260pin, Speed= 1066MHz / DDR4-2133 / 1.2V / PC3-17100 | � |
