EZ3-ITC - Kontron
Call for Price / Availability 888.528.9233
- Part:
- EZ3-ITC
- Manufacturer:
- Kontron
- Description:
- Turnkey x86 3U cPCI Platform
- Availability:
- Available: Submit request for datasheets and more information.

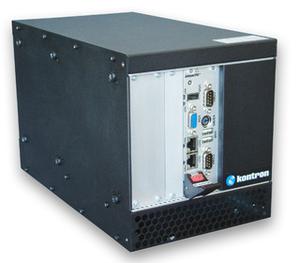

This small air cooled 3U cPCI rack is fitted with a Kontron ITC-320 single board computer and its rear transition module. The Intel Core,2 Duo SBC offers 1 GB of main memory and runs at 1.5 GHz.
The SBC is delivered in its 8HP format offering easy access to extra serial lines and USB ports, along with a SATA HDD socket.
Specifications
- 1,5 GHz Intel Core,2 Duo SBC
- Air-Cooled Laboratory Environment
- Pre-Installed Linux
- Slots for Extensions
- Ideal for Software Development targeting Conduction-Cooled ITC-
Features
| CPU | Intel Core,2 Duo (L7400) @ 1.5 GHz, 4 MB L2 - 1 GB DDR2 - 400 SDRAM with ECC |
| Connectivity | Front: USB 2.0 port, VGA connector, PS2 Keyboard/Mouse Connector, 2 GETH ports, COM3/COM4 serial ports Rear: Faceplate: 2 GETH (or at the front, BIOS configurable), 1 USB 2.0 ports, 1 Serial ports (COM1) On-board connectors: 3 SATA, 1 Serial |
| Operation Temperature | 0� to 35� C |
| Dimensions (H x W x D) | 300 (L) x 185 (l) x 195 (h) |
| Power Consumption | 200 Watts |
Datasheets
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ komsa-supportbrochure-2015v.pdf, 0.98 mb, May 19, 2015 ]
EZ3-ITC datasheet
[ ez3-itc.pdf, 1.08 mb, Nov 27, 2013 ]
Warranty
10-Day Inspection Period: If the EZ3-ITC purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.
30-Day Warranty: The 30-Day warranty for EZ3-ITC covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:
1. Repair
2. Replacement
3. Refund
** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**
All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.
Warranty Options:
Our Standard Warranty: Warranty may vary dependent on product and manufacturer.
No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.
Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
