- Part:
- KTQ77/FLEX
- Manufacturer:
- Kontron
- Description:

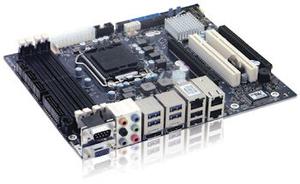

- KTQ77/FLEX embedded & longterm available Flex-ATX Motherboard
- Availability:
- Available: Submit request for datasheets and more information.
Based on the latest Intel 3rd generation chipset, the Kontron KTQ77/FLEX embedded motherboard with long-term availability offer an ideal performance-per-watt ratio and the very latest interface technology, like gen 3.0 PCI Express x16, without neglecting embedded designers' needs: They still carry, for example, 6x SATA interfaces (4x SATA150/300 and 2x SATA600) w. RAID 0/1/5/10 support alongside the 4x USB 3.0 & 10x USB 2.0 interfaces. The state of the art graphics performance is supported by 2 x Display Port & 1 x CRT interface., and offers the usage of 3 independent displays. An unique multipurpose KT Feature Connector supports up to 160 GPIO's. The embedded motherboards also offer more PCB layers than conventional motherboards designed for the consumer market, in order to achieve excellent signal qualities and optimize electromagnetic compatibility. Kontron۪s new embedded motherboard also support Intel Active Management Technology (Intel AMT 8.0) for remote management and easy maintenance resulting in higher system availability and lower total costs.
Specifications
- 3rd Generation Intel i7-,i5,-i3 2Core and 4Core CPUs
- Long term available embedded FLEX-ATX motherboard (up to 7 years after release)
- High CPU and graphics performance
- Up to 32 GB DDR3 RAM
- 6 x SATA, 4 x USB 3.0 & 10x USB 2.0, 3 x GbE-LAN with incl. Intel AMT 8.0
- 2 x Display Port for flexible, high resolution display drive
- 3 independent display support
- mSATA interface for compact SSD storage
- Multi purpose KT Feature Connector
- Gen 3.0 PCIe x16 & PCIe x4 & 2 x PCI 32bits/33MHz
Features
| Form Factor | Flex-ATX |
| Dimensions (H x W x D) | 9' x 7,5' 22,86 cm x 19,05 cm |
| CPU | Supports: 3rd Generation Intel i7-,i5,-i3 2Core and 4Core CPUs Intel Pentium G2120, 3,1GHz, dual Core, 3, 55W Intel Core i3-3220, 3.3GHz, dual Core, 65W Intel Core i5-3550S, 3.0GHz, quad Core, 65W Intel Core i7-3770, 3.4GHz, quad Core, 95W |
| Chipset | Intel Q77 |
| Main Memory | Up to 32 GB DDR3 (max 4x 8GB), 1067/1333/1600 MHz support |
| Front Side Bus | Up to 20 Gb/s each direction, full duplex DMI 2.0 interface to PCH Four lanes in each direction |
| Graphics Controller | integrated |
| Graphics | 2x Display port 1x CRT 1x VGA |
| Ethernet Controller |
| Ethernet | 3 x GbE-LAN, (1x AMT 8.0 support) |
| Hard Disk | 6x SATA interfaces (4x SATA 150/300 and 2x SATA 600) w. RAID 0/1/5/10 mSATA interface for SSD storage |
| Parallel Port |
| Flash Onboard |
| PCI | 2x PCI 32bits/33MHz |
| PCI Express / PCI support | 1x PCIe x16 1x PCIe x4 (in a x16 slot) |
| Mini-PCI | 1x mini-PCI Epress |
| USB | 4 x USB 3.0 & 10x USB 2.0 |
| IEEE 1394 Firewire |
| Serial | 4 x RS232 |
| Rear I/O | 1x DB9 serial port 1x VGA 1x Audio stacked 2x3 mini Jack tower 6x USB 2x Display port 3x RJ45 LAN |
| Audio Controller | VIA 1708B 7.1 Channel HD Audio stacked 2x3 mini Jack tower |
| Keyboard | Internal PS2 Mouse/Keyboard connector |
| Special Features | KT embedded feature connector with ADC, DAC up to 160 GPIO |
| BIOS | AMI UEFI |
| Power Management |
| Operation Temperature | 0�C - 60�C |
| Operating System |
| Compliance |
Datasheets
Datasheet KTQ77/FLEX
Datasheet KTQ77/FLEX
[ datasheet_ktq77-flex.pdf, 1.16 mb, Jan 15, 2016 ]
Manuals
KTD-N0848 KTQ77 Users Guide
[ ktd-n0848-d_ktq77-users-guide.pdf, 3.57 mb, May 17, 2016 ]
Variants
| KTQ77/FLEX 810470-4500 | | KTQ77/FLEX embedded & longterm available Flex-ATX Motherboard | more |
| Intel Pentium G2120 3,1GHz 1052-5623 |  | Intel Pentium G2120, 3,1GHz, dual Core, 3MB Cache, 55W, FCLGA1155, Embedded | � |
| Intel Core i3-3220 3.3GHz 1052-5617 | | Intel Core i3-3220, 3.3GHz, dual Core, 3MB Cache, 65W, FCLGA1155, Embedded | � |
| Intel Core i5-3550S 3.0GHz 1052-5619 | | Intel Core i5-3550S, 3.0GHz, quad Core, 3MB Cache, 65W, FCLGA1155, Embedded | � |
| Intel Core i7-3770 3.4GHz 1051-8773 | | Intel Core i7-3770, 3.4GHz, quad Core, 3MB Cache, 95W, FCLGA1155, Embedded | � |
Accessories
| DDR3, 1GB, 1066MHZ, PC3-8500 DIMM 1054-2766 | | DDR3, 1GB, 240P, 1066MHZ, PC3-8500 DIMM | � |
| DDR3-1333 DIMM 1GB ECC 1060-2476 | | DDR3, 1GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3, 1GB, 1600MHZ 1054-3706 | | DDR3, 1GB, 240P, 1600MHZ, PC3-12800 DIMM | � |
| DDR3, 2GB, 1066MHZ, PC3-8500 DIMM 1054-2768 | | DDR3, 2GB, 240P, 1066MHZ, PC3-8500 DIMM | � |
| DDR3-1333 DIMM 2GB 1060-2492 | | DDR3, 2GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1600 DIMM 2GB 1060-2498 | | DDR3, 2GB, 240P, 1600MHZ, PC3-12800 DIMM | � |
| DDR3-1066 DIMM 4GB 1060-2490 | | DDR3, 4GB, 240P, 1066MHZ, PC3-8500 DIMM | � |
| DDR3-1333 DIMM 4GB 1060-2494 | | DDR3, 4GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1600 DIMM 4GB 1060-2500 | | DDR3, 4GB, 240P, 1600MHZ, PC3-12800 DIMM | � |
| DDR3-1333 DIMM 8GB 1060-2496 | | DDR3, 8GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1600 DIMM 8GB 1060-2488 | | DDR3, 8GB, 240p, 1600MHZ, PC3-12800 DIMM | � |
| Active Cooler for KTQ67/ KTQ77 / KTQ87/ KTH81 1046-6305 |  | Active Cooler for Socket H2 (LGA1155) ZIF Socket CPU | more |
| Accessory kit for KTQ67, KTQ77 826599 | | 3x COM cable (2.54mm, 100mm), 1x 6-Pin to PS2-Kbd-Mse cable, 1x Front Panel Open-End cable, 1x Audio Open-End cable, 6x SATA cable (500mm), 4x Cable+Bracket (USB, 10poled), Feature 44pol 1 to 1 cable (300mm), SW Man&Driver CD | � |
| COM port Cable, 100mm 821017 |  | COM port Cable, 2.54mm, 100mm long | more |
| COM port Cable, 200mm 821016 | | COM port cable, 2.54mm, 200mm long | � |
| SATA Cable 500mm 821035 |  | SATA Cable 500mm long | more |
| Front Panel Open-End Cable 821042 |  | Front Panel Open-End Cable | more |
| Audio Open-End Cable 821043 |  | Audio Open-End Cable | more |
| DP to VGA Adapter 1045-5779 | | DP to VGA Adapter | � |
| DP to DVI Adapter 1045-5780 | | DP to DVI Adapter | � |
| DVI-CRT Adapter 822001 | | DVI-CRT adapter | � |
| Cable COM2 100mm Bracket 821036 | | Cable COM2 100mm Bracket | more |
| USB Bracket 821401 |  | USB Bracket | more |
| LVDS Connector for cable 910000005 |  | LVDS Connector for cable | more |
