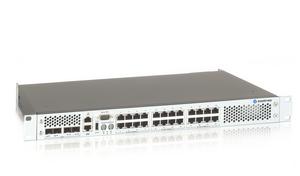

RES 2400/2404 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- RES 2400/2404
- Manufacturer:
- Kontron
- Description:
- High performance Rugged Ethernet switch
- Availability:
- Available: Submit request for datasheets and more information.
The 19 inch Rugged Ethernet Switch (RES is designed for harsh governmental application conditions, where longevity and reliability is needed. Using highest integration of Ethernet switch silicon, the RES 2400 / 2404 is based on Kontrons proven Ethernet building blocks and management software to quickly install reliable Ethernet networks.
The RES is a cost effective manageable Ethernet switch solution offering more capabilities than just Gigabit Ethernet switching capabilities. It is available in 2 versions:
- RES 2400: 24 Gigabit Ethernet copper interfaces, according 10/100/1000BASE-T
- RES 2404: RES2400 functions and additional four 1/10 Gigabit Ethernet SFP+ ports
Due to the extensive technical know-how and existing building blocks, Kontron also realizes your custom switch design according to your special requirements.
Specifications
- Powerful: 19 1U fully managed 1 / 10G Ethernet switch
- Flexible, easy to use: Up to 24x1G RJ45 ports plus 4x10G SFP+ ports, command line and web management
- Reliable: High temperature range, shock and vibration robustness, optionally fanless operation
- Fully managed Layer 2 / 3 non blocking Ethernet Switch, IPv6 support
- 24x 10/100/1000Base-T, RJ45 connectors
- 4x 10GBase-X SFP+ for direct attach copper or fiber
- USB and DIP switches for configuration management
- Command line and web management interface
- 1U, 19 inch housing
- Power supply for 110/230VAC or optionally 24VDC
- Wide temperature range, -25 to +70C
- Designed to meet industrial, naval and military norms
Features
| Additional | Various configurations available |
| Connection | 1GbE: 24x RJ45, 10GbE: 4 SFP+ |
| Dimensions (H x W x D) | 19 inch, 1U Chassis, 445 x 45 x 282 mm |
| Ethernet/Bridging Protocols | Include VLANs (802.1Q), Link aggregation (802.3ad), Spanning tree (802.1D, 802.1w), QoS (IEEE 802.1p), Flow control (802.3x), GARP/GVRP, GMRP |
| Function | Managed L2/L3 Switch |
| Operation Temperature | -25 to 70C |
| Ports | 4x 10G SFP+, 24x 1G RJ45 |
| Power Consumption | 110/230VAC, 75W max; 24VDC (18 to 36VDC), 75W max. |
| Routing Protocols | Include OSPFV2, RIPV2, VRRP, IGMP Snooping, DiffServ, ARP, ICMP |
Datasheets
RES 2400/2404 Datasheet
[ ds-res240x_2013-06-13.pdf, 0.81 mb, Nov 11, 2014 ]
Manuals
Quick Start - Fastpath Configuration Guide [restrictions apply]
The Fastpath quick start guide explains the general use of the command line programming interface and provides practical examples.
[ fastpath-configuration-guide-v1.1.pdf-2, 4.74 mb, Nov 27, 2013 ]
