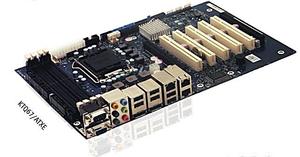

Part:: KTQ67/ATXE
Manufacturer:: Kontron
Description:: Embedded ATXE Motherboard with 2nd Generation Intel i7-,i5,-i3 2Core and 4Core CPUs & Intel Q67 Chipset
Availability:: Available: Submit request for datasheets and more information.

Based on the latest Intel Q67 chipset, the Kontron KTQ67/ATXE embedded motherboard with long-term availability offer an ideal performance-per-watt ratio and the very latest interface technology, like gen 2.0 PCI Express x16, without neglecting embedded designers' needs: They still carry, for example, 6x SATA interfaces (4x SATA150/300 and 2x SATA600) w. RAID 0/1/5/10 support alongside the 14 USB 2.0 interfaces. The state of the art graphics performance is supported by 2 x Display Port, LVDS (optional) and 1 x CRT interface. An unique multipurpose KT Feature Connector supports up to 160 GPIO's. The embedded motherboards also offer more PCB layers than conventional motherboards, in order to achieve excellent signal qualities and optimize electromagnetic compatibility. Kontron۪s new embedded motherboard also support Intel Active Management Technology (Intel AMT 7.0) for remote management and easy maintenance resulting in higher system availability and lower total costs.

Specifications

2nd Generation Intel i7-,i5,-i3 2Core and 4Core CPUs &
Intel Q67 Chipset
Long term available embedded ATXE motherboard (up to 7 years after release)
High CPU and graphics performance
Up to 32 GB DDR3 RAM
6 x SATA, 14 x USB 2.0, 3 x GbE-LAN with incl. Intel AMT 7.0
2 x Display Port for flexible, high resolution display drive
Multi purpose KT Feature Connector
Gen 2.0 PCIe x16 & PCIe x4 & 5 x PCI 32bits/33MHz

Features

Form Factor

ATX

Dimensions (H x W x D)

12,0' x 7,5'

30,48 cm x 19,05 cm

CPU	Supports: Intel Core i7/i5/i3 2C Intel Celeron G540, 2.5GHz, dual Core, 2MB Cache, 65W Intel Pentium G850, 2.90GHz, dual Core, 3MB Cache, 65W Intel Core i3-2120 Processor, 3.30GHz, dual Core Intel Core i5-2400 Processor, 3,10GHz, quad Core Intel Core i7-2600 Processor, 3,40GHz, quad Core

Chipset

Intel Q67

Main Memory

Up to 32 GB DDR3 (max. 4x 8GB)

Front Side Bus

Up to 20 Gb/s each direction, full duplex

DMI 2.0 interface to PCH

Four lanes in each direction;

Graphics Controller

integrated

Graphics

2x Display port

1x PCIe x16

1x LVDS (optional)

1x CRT

DB15 VGA

Ethernet Controller

Intel 82579LM LAN

Ethernet

3 x GbE-LAN, (1x AMT 8.0 support)

Hard Disk

6x SATA interfaces (4x SATA 150/300 and 2x SATA 600) w. RAID 0/1/5/10

mSATA interface for SSD storage

Parallel Port

1x LPT Parallel port in FFC connector

Flash Onboard

n/a

PCI	5x PCI 32bits/33MHz

PCI Express / PCI support

1x PCIe x16

1x PCIe x4 (in a x16 slot)

Mini-PCI

1x mini PCI-Express

USB	14 x USB 2.0 (6x USB on Rear I/O)

IEEE 1394 Firewire

n/a

Serial

4x RS232

Rear I/O

Audio Controller

VIA 1708B

7.1 Channel HD Audio

stacked 2x3 mini Jack tower

Keyboard

PS2 Mouse/Keyboard connector

Special Features

DAC up to 160 GPIO

TPM 1.2 support

KT embedded feature connector with ADC

BIOS

AMI

Power Management

ACPI 3.0

Operation Temperature

0�C - 60�C (32�F - 140�F)

Operating System

WES7 32/64bit

Linux

VxWorks

Compliance

Datasheets

Datasheet KTQ67-Motherboard-Family
[ datasheet_ktq67_motherboard-family.pdf, 1.08 mb, Jan 15, 2016 ]

Manuals

KTQ67 Users Guide
[ ktd-n0829-h_ktq67-users-guide.pdf, 4.4 mb, May 17, 2016 ]

Variants

KTQ67/ATXE 810450-4500	Embedded ATXE Motherboard with 2nd Generation Intel i7-,i5,-i3 2Core and 4Core CPUs & Intel Q67 Chipset	more
Intel Celeron G540 1046-5588	Intel Celeron G540, 2.5GHz, dual Core, 2MB Cache, 65W; FCLGA1155, Embedded	�
Intel Pentium G850 1044-7736	Intel Pentium G850, 2.90GHz, dual Core, 3MB Cache, 65W, LGA1155, Embedded	�
Intel Core i3-2120 Processor 1044-7678	Intel Core i3-2120 Processor, 3.30GHz, dual Core, 3MB Cache, 65W, FCLGA1155, Embedded	�
Intel Core i5-2400 Processor 1044-7735	Intel Core i5-2400 Processor, 3,10GHz, quad Core, 6MB Cache, 95W, LGA1155, Embedded	�
Intel Core i7-2600 Processor 1044-7654	Intel Core i7-2600 Processor, 3,40GHz, quad Core, 8MB Cache, 95W, LGA1155, Embedded	�

Accessories

DDR3, 1GB, 1066MHZ, PC3-8500 DIMM 1054-2766	DDR3, 1GB, 240P, 1066MHZ, PC3-8500 DIMM	�
DDR3-1333 DIMM 1GB ECC 1060-2476	DDR3, 1GB, 240P, 1333MHZ, PC3-10600 DIMM	�
DDR3, 1GB, 1600MHZ 1054-3706	DDR3, 1GB, 240P, 1600MHZ, PC3-12800 DIMM	�
DDR3, 2GB, 1066MHZ, PC3-8500 DIMM 1054-2768	DDR3, 2GB, 240P, 1066MHZ, PC3-8500 DIMM	�
DDR3-1333 DIMM 2GB 1060-2492	DDR3, 2GB, 240P, 1333MHZ, PC3-10600 DIMM	�
DDR3-1600 DIMM 2GB 1060-2498	DDR3, 2GB, 240P, 1600MHZ, PC3-12800 DIMM	�
DDR3-1066 DIMM 4GB 1060-2490	DDR3, 4GB, 240P, 1066MHZ, PC3-8500 DIMM	�
DDR3-1333 DIMM 4GB 1060-2494	DDR3, 4GB, 240P, 1333MHZ, PC3-10600 DIMM	�
DDR3-1600 DIMM 4GB 1060-2500	DDR3, 4GB, 240P, 1600MHZ, PC3-12800 DIMM	�
DDR3-1333 DIMM 8GB 1060-2496	DDR3, 8GB, 240P, 1333MHZ, PC3-10600 DIMM	�
DDR3-1600 DIMM 8GB 1060-2488	DDR3, 8GB, 240p, 1600MHZ, PC3-12800 DIMM	�
Active Cooler for KTQ67/ KTQ77 / KTQ87/ KTH81 1046-6305	Active Cooler for Socket H2 (LGA1155) ZIF Socket CPU	more
Accessory kit for KTQ67, KTQ77 826599	3x COM cable (2.54mm, 100mm), 1x 6-Pin to PS2-Kbd-Mse cable, 1x Front Panel Open-End cable, 1x Audio Open-End cable, 6x SATA cable (500mm), 4x Cable+Bracket (USB, 10poled), Feature 44pol 1 to 1 cable (300mm), SW Man&Driver CD	�
COM port Cable, 100mm 821017	COM port Cable, 2.54mm, 100mm long	more
COM port Cable, 200mm 821016	COM port cable, 2.54mm, 200mm long	�
SATA Cable 500mm 821035	SATA Cable 500mm long	more
Front Panel Open-End Cable 821042	Front Panel Open-End Cable	more
Audio Open-End Cable 821043	Audio Open-End Cable	more
Cable COM2 100mm Bracket 821036	Cable COM2 100mm Bracket	more
USB Bracket 821401	USB Bracket	more
DP to VGA Adapter 1045-5779	DP to VGA Adapter	�
DP to DVI Adapter 1045-5780	DP to DVI Adapter	�
DVI-CRT Adapter 822001	DVI-CRT adapter	�
LVDS Connector for cable 910000005	LVDS Connector for cable	more

Warranty

10-Day Inspection Period: If the KTQ67/ATXE purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.

30-Day Warranty: The 30-Day warranty for KTQ67/ATXE covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:

1. Repair

2. Replacement

3. Refund

** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**

All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.

Warranty Options:

Our Standard Warranty: Warranty may vary dependent on product and manufacturer.

No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.

Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
