- SMARC-sXQU
- Manufacturer:
- Kontron
- Description:

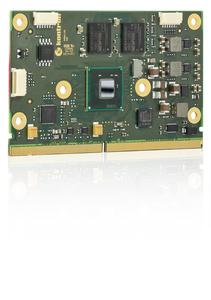

- SMARC module with Intel Quark, processor
- Availability:
- Available: Submit request for datasheets and more information.
The new Kontron SMARC-sXBTi Computer-on-Modules have been developed in compliance with the
SGET specification and equipped with Intel Quark, X1000 series processors, as well as up to 1 GB
DDR3 RAM, with the option of ECC. They support the extended temperature range from -40 �C to
+85 �C and measure only 82 mm x 50 mm. Other interfaces include 2x 10/100 MBit Ethernet LAN (1x
via AFB signals), 1x USB 2.0 Client und 2x USB 2.0 Host. Customer-specific upgrades can be
implemented via SDIO and 2x PCIe and 2x serial. The power supply is only 3V- 5.25 V.
Specifications
- Intel Quark,
- Up to 1GB DDR3L memory down (ECC optional with X1021)
- 2x PCIe, 2x serial, SDIO
- 1x LAN (10/100MBit) + 1 LAN (10/100, via AFB signals)
- Industrial Grade Temperature
Features
| Compliance | SMARC - Smart Mobile Architecture by SGET - small size |
| Dimensions (H x W x D) | 82mm x 50mm |
| CPU | Intel Quark, X1000, X1010 or X1021 |
| Main Memory | up to 1GB DDR3L memory down (ECC optional with X1021 and X1010) |
| Ethernet | 2x 10/100 MBit Ethernet (1x via AFB signals) |
| PCI | 2x PCIe x1 |
| USB | 1x USB 2.0 Client 2x USB 2.0 Host |
| Serial | 1x RX/TX (Ser0) 1x UART (Ser1) |
| Power Supply | 3V - 5.25V Operates directly from single level Lithium Ion cells or fixed 3.3V or 5V power supplies |
| Power Consumption | tbd |
| Temperature | 0�C to +60�C operating, -40�C to +85�C non-operating -40�C to +85�C operating, -40�C to +85�C non-operating (with X1021 only) |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
Datasheets
Datasheet SMARC-sXQU
[ datasheet_smarc-sxqu.pdf, 1.39 mb, Sep 10, 2015 ]
Manuals
User's Guide
User's Guide for SMARC-sXQU
[ sxqum100.pdf, 0.65 mb, May 6, 2015 ]
Tech Spec Sheet
Tech Specs SMARC
[ tech-spec_smarc.pdf, 0.45 mb, Feb 29, 2016 ]
Variants
| SMARC-sXQU X1000 256MB 51006-0200-04-1 |  | SMARC with Intel Quark X1000, 1x400MHz, 256MB DDR3 memory down, commercial temperature | � |
| SMARC-sXQU X1010 512MB 51006-0500-04-2 | | SMARC with Intel Quark X1010, 1x400MHz, 512MB DDR3 with ECC memory down, commercial temperature | � |
| SMARC-sXQU X1011 1E 51006-1000-04-3 | | SMARC with Intel Quark X1011, 1x400MHz, 1GB DDR3 with ECC memory down, industrial temperature | � |
| SMARC-sXQU X1021 1E 51006-1000-04-4 | | SMARC with Intel Quark X1021, 1x400MHz, 1GB DDR3 with ECC memory down, industrial temperature, secure boot | � |
Accessories

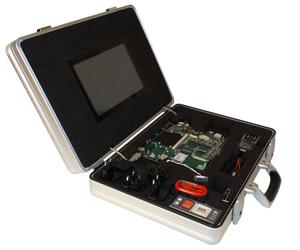

| SMARC Starterkit 51100-0000-00-S |  | The SMARC Starterkit with SMARC Eval Carrier is equipped for express evaluation purposes. | more |
| SMARC Mounting Kit 51117-0000-00-0 | | SMARC Mounting Kit | � |
| HSP SMARC,-sXBTi 51006-0000-99-1 | | Heatspreader for SMARC,-sXBTi | � |
