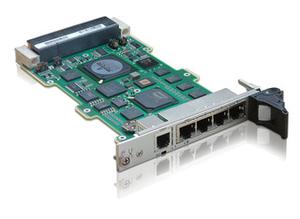

VX3910 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- VX3910
- Manufacturer:
- Kontron
- Description:
- High End L2/L3 OpenVPX Switch
- Availability:
- Available: Submit request for datasheets and more information.
VX3910 provides 28 Gigabit Ethernet ports and comprehensive management features for extremely rugged 3U system designs. It implements Kontron Embedded Network Technology (same advanced feature set and operational interfaces across multiple form factors) which simplifies IPv4/v6 inter-and intra-platform networking.
The non-blocking fully managed L2/L3 Gigabit Switch provides up to 24x Gigabit ports to the backplane. The four 1000 Base-T uplinks on the front panel, one dedicated for out-of-band management, expand the range to a total of 28 ports.
VX3910 is available in an air-cooled version (0�C to +55�C) and in rugged conduction-cooled version (-40�C to + 85�C).
Specifications
- Non blocking Gigabit Ethernet Switch
- Fully managed Layer 3 solution
- 3x 1000BASE-T Uplinks on front panel
- up to 24x 1000BASE-BX to the rear
- Enterprise Class switching functions
- 10/100/1000BASE-T Management Port
Features
| Power Consumption | 20 Watt (Typ.) |
| Routing Protocols | Optional: include OSPFv2, RIPv2, VRRP, VLAN routing and DHCP relay |
| Management | Fully managed L2 switch via SNMP, TELNET, CLI Out of Band (front panel FE) or In-band via Fabric |
| Operation Temperature | 0�C to 55�C Air-Cooled (higher temp on demand), -40�C to +85�C Conduction-Cooled |
| Standard | Open VPX MOD3-SWH-2F24U module usable in SLT3-SWH-2F24U-14.4.3 slots, ROHS and CE compliant |
| Rear I/O | Up to 24 ultra thin pipes on backplane (1000BASE-BX), Up to 2x 1000BASE-T backplane links |
| Frontpanel | 3x 1000BASE-T uplinks (RJ-45) with one re-routable to the backplane |
Datasheets
VX3910 Datasheet
[ datasheet_vx3910.pdf, 0.97 mb, Nov 19, 2015 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ komsa-supportbrochure-2015v.pdf, 0.98 mb, May 19, 2015 ]
Manuals
VX3910 - 3U VPX Ethernet Switch User's Guide [restrictions apply]
[ cadta81-3e-vx3910-ug.pdf, 1.49 mb, Jun 17, 2014 ]
VX3910 - 3U VPX Ethernet Switch CLI Reference Manual [restrictions apply]
[ vx3910-cli-reference-manual-v1.3.pdf, 1.91 mb, Jun 17, 2014 ]
Quick Start - Fastpath Configuration Guide [restrictions apply]
The Fastpath quick start guide explains the general use of the command line programming interface and provides practical examples.
[ fastpath-configuration-guide-v1.1.pdf-2, 4.74 mb, Nov 27, 2013 ]
Whitepapers
VXFabric White Paper [restrictions apply]
[ whitepaper_en_vxfabric-v2-final.pdf, 5.6 mb, Nov 27, 2013 ]
Managing 3rd gen High Data Rates on VPX Backplanes [restrictions apply]
This white paper describes the key parameters that must be mastered to achieve high data rates on VPX architectures. It explains some of the technologies used by Kontron to operate VPX computers at top bandwidth (eg PCIe gen3, 10G Base KR)
[ whitepaper_vpx_highdatarates.pdf, 3.35 mb, Feb 11, 2014 ]
