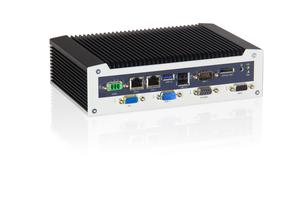

KBox A-103 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- KBox A-103
- Manufacturer:
- Kontron
- Description:
- Embedded Fanless BOX PC
- Availability:
- Available: Submit request for datasheets and more information.
With a wide range of functions and interfaces, the KBoxA-103 is ready for the Internet of Things (IoT) using the wifi options via the mini PCI interface and GPRS and LTE data transmissions via the optional SIM card slot. The KBox A-103 is equipped with scalable SMARC, modules. The modular approach ensures simple upgrades to the next processor generation (Forever Young) for changing performance requirements. With the maintenance free design, the KBox A-103 does not require any additional batteries for operation, it is very reliable (high MTBF) and easily adapts to customer requirements.
The KBox A-103 supports 10 to 30 V DCC input and can be operated in an extended operating temperature range from -20 to 60 Celsius. The unit provides user-friendly front access for its two mini-PCIe modules, SIM card holder, and DisplayPort and VGA connections.
Specifications
- Modular approach
- IoT ready - simply connected
- Maintenance free - fanless and battery free
- Intel Atom, up to E3845 Quadcore
- 1 x USB 3.0, 2 x USB 2.0
- 1x Display port, 1 x VGA
- Up to 3 x COM
- 2 x GB Ethernet with teaming , TPP
- Fieldbus options
- Wide range DC input ( 10-30V)
- 2 x Mini PCI_e
- 1 x MSATA
- SIM card socket
- Optional VESA / DIN Rail / Wall Mounting kits
Datasheets
Datasheet KBox A-103
[ datasheet_kbox-a-103.pdf, 0.7 mb, Dec 22, 2015 ]
Whitepapers
Wartungsfrei [restrictions apply]
Variants
| KBox A-103 2-A0DF-2003 |  | SMARC-sXBTi E3845 4E/16GB, 56 GB SSD, WES 7, vertical mount | |
| KBox A-103 2-A0DF-2004 | | SMARC-sXBTi E3827 2GB, 120 GB SSD, WES 7, vertical mount | |
| KBox A-103 2-A0DF-2005 | | SMARC-sXBTi E3815 1GB, 60 GB SSD, WES 7, vertical mount |
