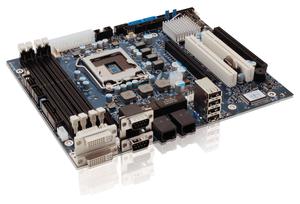

KTQ67/FLEX MED - Kontron
Call for Price / Availability 888.528.9233
- Part:
- KTQ67/FLEX MED
- Manufacturer:
- Kontron
- Description:
- Embedded Motherboard optimized for Medical Devices & Applications
- Availability:
- Available: Submit request for datasheets and more information.
The KTQ67/Flex-MED motherboard is a standard Flex-ATX board with two EN60601-1 compliant isolated Ethernet ports. The KTQ67/Flex-MED offers a long-term availability of 7 years and in addition to the isolated LANs, it includes 2 DVI interfaces to drive two medical HD monitors independantly. The performance is scalable across the complete range of the powerful dual core and quad core desktop CPUs from Intel�s 3rd generation Core processors, making it easy to tailor the motherboard to a broad range of individual performance needs.
Specifications
- 2 x EN60601-1 compliant isolated Ethernet ports
- Long term available embedded FLEX-ATX motherboard
- High CPU and graphics performance
- Up to 32 GB DDR3 RAM
- Powerful dual core and quad core desktop CPUs from Intel�s 3rd Core generation
- Front Side Bus: DMI 2.0 support, For lanes in each direction, up to 20 Gb/s each direction, full duplex, DMI interface to PCH is supported
- Graphics Controller: Integrated into CPU
- Graphic Interface: 1x PCIe x16 (stacked), 1x DVI-I, 1x DVI-D
- SATA: 6x SATA interfaces (4x SATA150/300 and 2x SATA600) w. RAID 0/1/5/10
- USB: 12x port USB 2.0 (4x USB at Rear I/O, 6x USB in internal headers, 2x USB in front panel connector)
- Available I/Os: 1x PCIe x4 (in x16 connector), 2x PCI 32bits/33MHz, 2x COM, Internal PS2 Mouse/Keyboard connector, 2x DVI with active drivers
- Rear I/O: 2x DE-9 serial port, 4x USB, 2x RJ45 LAN, VGA supported by 1x DVI-I, 1x DVI-D
- Form Factor: 22,86 x 19,05 cm (9' x 7.5')
Features
| Form Factor | Flex-ATX |
| Dimensions (H x W x D) | 9' x 7,5' 22,86 cm x 19,05 cm |
| CPU | Supports: Intel i7-,i5,-i3 2 Core and 4 Core CPUs; Intel Celeron Processor Intel Celeron G1620, 2.7GHz, dual Core, 55W Intel Pentium G2120, 3.3GHz, dual Core, 65W Intel Core i3-3220, 3.3GHz, dual Core, 55W Intel Core i5-3550S, 3.0GHz, quad Core, 65W Intel Core i7-3770, 3.5GHz, quad Core, 77W |
| Chipset | Intel QM67 |
| Main Memory | Up to 32 GB DDR3 (max. 4x 8 GB) |
| Front Side Bus | Up to 20 Gb/s each direction, full duplex DMI 2.0 interface to PCH Four lanes in each direction |
| Graphics Controller | Intel HD Graphics 2500 or (depends on CPU) Intel HD Graphics 4000 |
| Graphics | DVI-I (incl. VGA) DVI-D LVDS single/dual channel (option) (1x PCIe x 16) |
| Ethernet Controller | 1x Intel Lewisville 82579LM 2x Intel Hartwell 82574L |
| Ethernet | 2x isolated Gigabit LAN |
| Hard Disk | 6x SATA (4x SATA150/300 and 2x SATA600) w. RAID 0,1,5,10 support 1x mSATA for SSD Storage |
| Parallel Port | LPT in a FFC connector |
| Flash Onboard | n/a |
| PCI | 2x PCI |
| PCI Express / PCI support | 1x PCIe x 16 1x PCIe x 1 |
| Mini-PCI | 2 x mini PCI-Express |
| USB | 12x USB 2.0 (4x USB at Rear I/O, 6x USB in internal headers, 2x USB in front panel connector) |
| IEEE 1394 Firewire | 2x IEEE1394a (Pin header) |
| Serial | 4x RS232 |
| Rear I/O | DVI-I (incl. VGA) DVI-D COM1/2 2x isolated RJ45 LAN 4x USB2.0 |
| Audio Controller | HD Audio 7.1 Mic x2 CDROM in and SPDIF |
| Keyboard | Internal PS2 Mouse/Keyboard connector |
| Special Features | DAC up to 160 GPIO KT embedded feature port with ADC |
| BIOS | AMI BIOS |
| Power Management | ACPI 3.0 |
| Operation Temperature | 0�C - 60�C (32�F - 140�F) |
| Operating System | WES7 32/64bit Linux VxWorks, WindRiver Linux |
| Compliance | EN60601-1 |
Datasheets
Datasheet KTQ67/FLEX-MED
[ datasheet_ktq67_flex-med.pdf, 1.03 mb, Jan 15, 2016 ]
Manuals
KTQ67/Flex-Medical Users Guide
[ ktd-n0849-e_ktq67-flex-medical-users-guide.pdf, 2.62 mb, May 17, 2016 ]
Variants
| KTQ67/FLEX MED 810460-4500 | | Embedded Motherboard optimized for Medical Devices & Applications | more |
| Intel Celeron G540 1046-5588 |  | Intel Celeron G540, 2.5GHz, dual Core, 2MB Cache, 65W; FCLGA1155, Embedded | � |
| Intel Pentium G850 1044-7736 | | Intel Pentium G850, 2.90GHz, dual Core, 3MB Cache, 65W, LGA1155, Embedded | � |
| Intel Core i3-2120 Processor 1044-7678 | | Intel Core i3-2120 Processor, 3.30GHz, dual Core, 3MB Cache, 65W, FCLGA1155, Embedded | � |
| Intel Core i5-2400 Processor 1044-7735 | | Intel Core i5-2400 Processor, 3,10GHz, quad Core, 6MB Cache, 95W, LGA1155, Embedded | � |
| Intel Core i7-2600 Processor 1044-7654 | | Intel Core i7-2600 Processor, 3,40GHz, quad Core, 8MB Cache, 95W, LGA1155, Embedded | � |
Accessories
| DDR3, 1GB, 1066MHZ, PC3-8500 DIMM 1054-2766 | | DDR3, 1GB, 240P, 1066MHZ, PC3-8500 DIMM | � |
| DDR3-1333 DIMM 1GB ECC 1060-2476 | | DDR3, 1GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3, 1GB, 1600MHZ 1054-3706 | | DDR3, 1GB, 240P, 1600MHZ, PC3-12800 DIMM | � |
| DDR3, 2GB, 1066MHZ, PC3-8500 DIMM 1054-2768 | | DDR3, 2GB, 240P, 1066MHZ, PC3-8500 DIMM | � |
| DDR3-1333 DIMM 2GB 1060-2492 | | DDR3, 2GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1600 DIMM 2GB 1060-2498 | | DDR3, 2GB, 240P, 1600MHZ, PC3-12800 DIMM | � |
| DDR3-1066 DIMM 4GB 1060-2490 | | DDR3, 4GB, 240P, 1066MHZ, PC3-8500 DIMM | � |
| DDR3-1333 DIMM 4GB 1060-2494 | | DDR3, 4GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1600 DIMM 4GB 1060-2500 | | DDR3, 4GB, 240P, 1600MHZ, PC3-12800 DIMM | � |
| DDR3-1333 DIMM 8GB 1060-2496 | | DDR3, 8GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1600 DIMM 8GB 1060-2488 | | DDR3, 8GB, 240p, 1600MHZ, PC3-12800 DIMM | � |
| Active Cooler for KTQ67/ KTQ77 / KTQ87/ KTH81 1046-6305 |  | Active Cooler for Socket H2 (LGA1155) ZIF Socket CPU | more |
| Accessory kit for KTQ67, KTQ77 826599 | | 3x COM cable (2.54mm, 100mm), 1x 6-Pin to PS2-Kbd-Mse cable, 1x Front Panel Open-End cable, 1x Audio Open-End cable, 6x SATA cable (500mm), 4x Cable+Bracket (USB, 10poled), Feature 44pol 1 to 1 cable (300mm), SW Man&Driver CD | � |
| COM port Cable, 100mm 821017 |  | COM port Cable, 2.54mm, 100mm long | more |
| COM port Cable, 200mm 821016 | | COM port cable, 2.54mm, 200mm long | � |
| SATA Cable 500mm 821035 |  | SATA Cable 500mm long | more |
| Front Panel Open-End Cable 821042 |  | Front Panel Open-End Cable | more |
| Audio Open-End Cable 821043 |  | Audio Open-End Cable | more |
| DP to VGA Adapter 1045-5779 | | DP to VGA Adapter | � |
| DP to DVI Adapter 1045-5780 | | DP to DVI Adapter | � |
| DVI-CRT Adapter 822001 | | DVI-CRT adapter | � |
| Cable COM2 100mm Bracket 821036 | | Cable COM2 100mm Bracket | more |
| USB Bracket 821401 |  | USB Bracket | more |
| LVDS Connector for cable 910000005 |  | LVDS Connector for cable | more |
