EZ1-VM6250 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- EZ1-VM6250
- Manufacturer:
- Kontron
- Description:
- Turnkey PowerPC 6U VME Platform
- Availability:
- Available: Submit request for datasheets and more information.

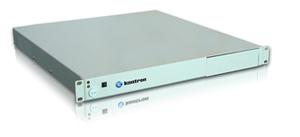

This small (1U) air-cooled 6U VME rack is fitted with a Kontron VM6250 single board computer and its rear transition module. The Freescale Dual-Core MPC8641D SBC offers 2 GB of main memory and runs at 1.33 GHz.
Specifications
- 1.33 GHz Freescale Dual-Core MPC8641D with Altivec
- Air-Cooled laboratory Environment
- Pre-Installed Linux (EZ1-VM6250-00-L)
- Pre-Installed Linux + VxWorks boot (EZ1-VM6250-00-L/V)
Features
| Processor | 1.33 GHz Freescale Dual-Core MPC8641D with Altivec unit |
| SATA | 250 GB SATA Hard Disk Device (HDD) |
| Connectivity | Rear Panel: Gigabit Ethernet, USB, Serial |
| Dimensions (H x W x D) | Height: 44.64 mm (1U) - Width: 443.5 mm - Deep: 254.3 mm |
| Temperature | Operating: 10C to +35C |
| Power Supply | 250W |
Datasheets
EZ1-VM6250 evaluation / development system data sheet
[ ez1-vm6250-gettingstarted-sddtf51.pdf, 0.13 mb, Nov 27, 2013 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ komsa-supportbrochure-2015v.pdf, 0.98 mb, May 19, 2015 ]
Manuals
EZ1-VM6250-00-L Quick Start [restrictions apply]
[ sddtf51.pdf, 0.13 mb, Nov 27, 2013 ]
EZ1-VM6250 Getting Started [restrictions apply]
[ sddtf50.pdf, 0.33 mb, Nov 27, 2013 ]
EZ1-VM6250-00-L/V Quick Start [restrictions apply]
[ sddtf66.pdf, 0.13 mb, Nov 27, 2013 ]
