ESC1600 / ESC2404 Module - Kontron
Call for Price / Availability 888.528.9233
- Part:
- ESC1600 / ESC2404 Module
- Manufacturer:
- Kontron
- Description:
- Fully managed Layer 2/3 Ethernet Switching Core Module
- Availability:
- Available: Submit request for datasheets and more information.

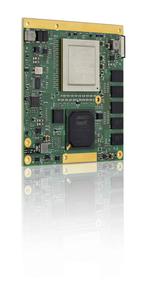

The 1/10G non blocking fully managed L2/L3 Ethernet Switching Core Module (ESC) is designed for individual Ethernet switching devices. It is ideally suited for harsh military and avionics applications, where longevity and reliability is needed. Based on the well established and reliable COMExpress compact form factor (95x95mm) Kontrons switching module is the perfect basis for customized Ethernet switch board & system solutions.
The ESC module is available in two versions:
- ESC 1600: 16 Gigabit Ethernet interfaces, SGMII standard for direct connection to physical layer
- ESC 2404: 24 Gigabit Ethernet interfaces, SGMII and XAUI for 1/10G Phys.
Due to the extensive technical know-how and existing building blocks, Kontron also realizes your custom baseboard and system design according to your special requirements.
Specifications
- Reliable: Based on the well established and reliable COMExpress compact form factor (95x95mm)
- Flexible, Easy to use: Up to 24x1G ports plus 4x10G ports, command line and web management
- Rugged: High temperature range, high shock and vibration robustness
- Single supply voltage 12VDC
- Designed to meet industrial, naval and military norms
Features
| Connection | SGMII, XAUI, MII, USB, serial, 10/100/1000 BASE-T, I_C |
| Dimensions (H x W x D) | 15mm x 95mm x 95mm incl. heat spreader |
| Ethernet/Bridging Protocols | IPv4/IPv6 support including VLANs (802.1Q), Link Aggregation (802.3ad), Spanning Tree (802.1D, 802.1w),QoS(802.1p), Flow Control (802.3x), GVRP, GMRP |
| Function | managed Ethernet Switch Core module |
| Operation Temperature | -40C to +85C surface temperature |
| Ports | 16 GbE (ESC1600) or 24GbE + 4x 10GbE (ESC2404) + management |
| Power Consumption | max. 18W (ESC1600); max. 25W (ESC2404) |
| Routing Protocols | IPv4/IPv6 support including OSPFv2, RIPv2, VRRP, IGMP Snooping, DiffServ, ARP, ICMP |
Datasheets
Datasheet ESC1600/2404
[ ds-esc-1600-2404_2012-12-10.pdf, 0.93 mb, Nov 11, 2014 ]
Manuals
Quick Start - Fastpath Configuration Guide
[ fastpath-configuration-guide-v1.1.pdf-3, 4.74 mb, Nov 27, 2013 ]
