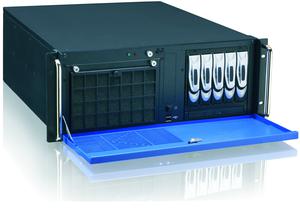

KISS 4U KTQ67 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- KISS 4U KTQ67
- Manufacturer:
- Kontron
- Description:
- 2nd Generation Intel i7-,i5,-i3 2Core and 4Core CPUs & Intel Q67 Chipset
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- extended operating temperature
- Extended warranty
- Supporting Sandybrige 2nd Gen CPUs
- 3 x 5,25' Drive bays , 1* 3,5' drive bay
- Hot swap Chassis Fans
- AC PSU 400 W 80+, optional DC24V or DC 48 V, redundant AC
- Up to 32 GB Memory
- AMT 7.0
Features
| CPU | Intel i3-2120 3,3GHz,Intel i5-2400 3,1GHz,Intel i7-2600 3,4GHz |
| Chipset | Intel Q67 Chipset |
| Approvals | CE, designed to meet UL |
| Connectivity | Front: 2* USB 2.0, REAR: 2* COM,VGA,2* Displayport,HD Audio,6* USB 2.0, 3* LAN 10/100/1000 |
| Front Side Bus | 800/1066/1333 MHz |
| Main Memory | Up to 16 GB DDR 3 |
| Mounting | Rack Mount, Desktop, Tower |
| Power Supply | 110-240V AC 400 W 80+, optional AC redundant, optional 24 VDC or 48VDC |
| RAID | on Board RAID 0, 1, 5 and 10, KISS Stor, KISS DA with RAIDcontroller |
| System Monitoring | By API |
| Temperature | Operating: 0-50 Degrees/C |
| Verified OS | WIN XP, Windows 7 32 Bit, Windows 7 64 Bit, Linux |
| Cooling | 2 * Hot swap chassis fans |
| Dimensions (H x W x D) | 4U x 19inch x 472mm |
| Drives | 1*3,5 bay , 3*5,25 bay, 1* Slim bay, 1* 3,5 internal |
| Weight | ~ 15kg |
| Free Slots | 5 x PCI 32 Bit ,1x PCI_e x 16, 1 x PCI_e x 4 |
Datasheets
Datasheet KISS 4U V2 Q67
[ datasheet-kiss-4u-v2-ktq67.pdf, 0.93 mb, Jan 7, 2015 ]
Manuals
Benutzerhandbuch KISS 4UV2
[ kiss_4u_v2_benutzerhandbuch_v1_01_de_web.pdf, 2.17 mb, Nov 27, 2013 ]
User Manual KISS 4UV2
[ kiss_4u_v2_user_guide_v1_01_en_web.pdf, 2.33 mb, Jul 7, 2016 ]
Tech Spec Sheet
Tech Specs KISS
[ tech-specs-kiss.pdf, 0.51 mb, Feb 29, 2016 ]
Variants

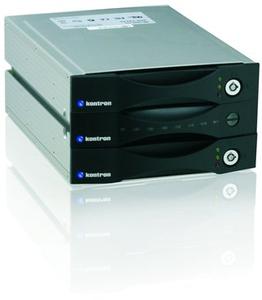

| KISS Stor 1 KISS Stor 1 |  | Integrated Industrial Raid 1 Subsystem for KISS 4U and KISS 4 U Short | more |

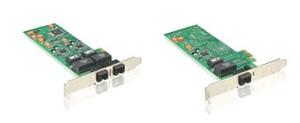

| PCIe Medical LAN Card PCIe Medical LAN Card |  | more | |

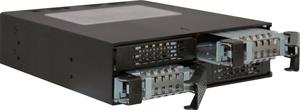

| KISS DA425 KISS DA425 |  | Disk Array for 4x 2.5' Hard drives | more |
| KISS DA335 KISS DA335 |  | This drive enclosure converts 2 x 5.25' drive bay to 3 x 3.5' hot-swap bays, supporting SATA interface. | more |

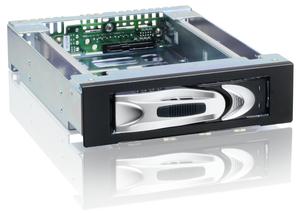

| KISS DA135 KISS DA135 |  | Rugged removable HDD carrier | more |

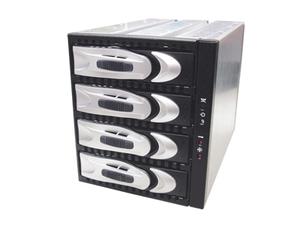

| KISS DA435 DA435 |  | Rugged removable HDD cannister for 4x 3.5' HDD | more |
| EASY USB to RS232 |  | USB to RS232 converter non isolated | more |
