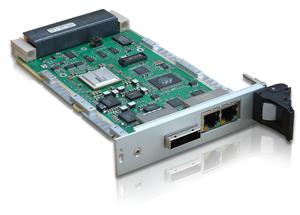

VX3905 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- VX3905
- Manufacturer:
- Kontron
- Description:
- 3U VPX PCI Express and Ethernet Hybrid switch
- Availability:
- Available: Submit request for datasheets and more information.
VX3905 is available in an air-cooled version (0�C to +55�C) and in rugged conduction-cooled version (-40�C to + 85�C).
Specifications
- Compliant with OpenVPX VITA65 profile SLT3-SWH-6F6U-14.4.1
- Up to 24 Ports/32 Lanes PCIe Switch
- 9 Port Giga Ethernet Switch
- Air-cooled and Conduction-cooled Builds
Features
| GbE Switch Features | Marvell MVL88E6185, 9 Giga ethernet ports, 3 on board 1000BaseT PHY, 2 front RJ45 1000BaseT (SA build only), 1 rear 1000BaseT, 6 1000BaseBX rear links |
| PCI Express / PCI support | IDT 89H32NT24AG2, 32 Lanes, up to 24 Ports, User configurable ports as x8, x4, x2 (and x1 for 16 lanes), PCI Express gen2 and gen1, Front x4 PCI Express cable connector (SA build only) |
| SATA | Optional Sata disk carrier compliant with OpenVPX VITA65 SLT3-STO-2U-14.5.1 |
| Power Supply | Single +5V power supply |
| Power Consumption | 25W max (without Sata drive) |
Datasheets
VX3905 Datasheet
[ ds-vx3905.pdf, 1.07 mb, Nov 25, 2015 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ komsa-supportbrochure-2015v.pdf, 0.98 mb, May 19, 2015 ]
Manuals
VX3905 Ethernet Switch - Firmware User Manual [restrictions apply]
[ sddtg22-0e-vx3905-firm.pdf, 0.31 mb, Nov 27, 2013 ]
VX3905 User's Guide [restrictions apply]
VX3905-3U VPX PCIe and ETH switch User's Guide
[ cadta89-3e-vx3905-ug.pdf, 0.68 mb, Nov 27, 2013 ]
Whitepapers
VXFabric White Paper [restrictions apply]
[ whitepaper_en_vxfabric-v2-final.pdf, 5.6 mb, Nov 27, 2013 ]
Managing 3rd gen High Data Rates on VPX Backplanes [restrictions apply]
This white paper describes the key parameters that must be mastered to achieve high data rates on VPX architectures. It explains some of the technologies used by Kontron to operate VPX computers at top bandwidth (eg PCIe gen3, 10G Base KR)
[ whitepaper_vpx_highdatarates.pdf, 3.35 mb, Feb 11, 2014 ]
Accessories
| 3U VPX Centralized Backplanes |  | 3U 8-Slot Centralized Technology | more |
Warranty
10-Day Inspection Period: If the VX3905 purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.
30-Day Warranty: The 30-Day warranty for VX3905 covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:
1. Repair
2. Replacement
3. Refund
** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**
All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.
Warranty Options:
Our Standard Warranty: Warranty may vary dependent on product and manufacturer.
No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.
Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
