OM6060 Kontron | Atlas Automation

Part:: OM6060
Manufacturer:: Kontron
Description:: MicroTCA System - OM6060 Compact AMC Platform
Availability:: Available: Submit request for datasheets and more information.

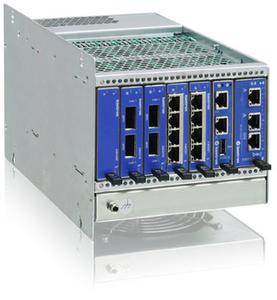

The OM6060 is a compact AMC platform targeted as entry level solution for prototypes in test equipment, packet processing and industrial applications. It can accommodate up to 6 mid-size AMCs and one MCH (full-size). An AC power supply is located in the rear. The OM6060 supports multiple CPUs with I/O-boards over PCIExpress (PCIe) without need of an extra PCIe fabric switch. PCIe fabric clocks are generated on the OM6060 backplane. Without need of Ethernet connectivity, the OM6060 provides MicroTCA management for AMCs over an MCMC-module (AM2901) on the backplane. This way, overhead and costs are reduced to a minimum.

Specifications

Compact system incl. AC power & fans for up to 6 AMCs
Entry level MicroTCA for packet processing, image processing and industrial applications
Single star backplane GbE; PCIe, SRIO & SATA point-to-point
Power Management, Fan control and PCIe fabric clocks on
backplane
Supports MCMC on backplane or Basic MCH AM4901

Datasheets

OM6060 Datasheet
[ datasheet_om6060.pdf, 0.92 mb, Dec 4, 2014 ]

Manuals

OM6060 Users Guide [restrictions apply]
[ 1037-0127_10_sk-man-om6060.pdf, 0.71 mb, Nov 27, 2013 ]

Warranty

10-Day Inspection Period: If the OM6060 purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.

30-Day Warranty: The 30-Day warranty for OM6060 covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:

1. Repair

2. Replacement

3. Refund

** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**

All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.

Warranty Options:

Our Standard Warranty: Warranty may vary dependent on product and manufacturer.

No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.

Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
