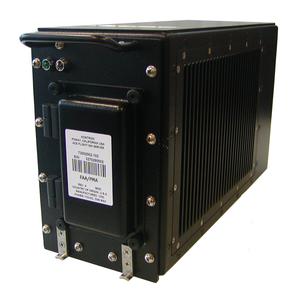

ACE Flight 4600 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- ACE Flight 4600
- Manufacturer:
- Kontron
- Description:
- General Purpose Airborne Server
- Availability:
- Available: Submit request for datasheets and more information.
The Kontron ACE Flight 4600 is a complete, highly integrated application-ready platform that is specifically designed to meet advanced communication application requirements for Ethernetbased network installations on both linefi t and retrofi t aircraft. Qualifi ed to D0-160F and optimized for a full range of fl ight information systems, the enhanced Kontron ACE Flight 4600 line isan ideal platform to build applications that include: crew and passenger web servers, flight maintenance or manifest servers, connectivity server, wireless content server and In-Flight Entertainment (IFE) servers.
The Kontron ACE Flight 4600 integrates the latest dual core 1.5 GHz Intel Core, i7 processor, 16GB of DDR3 memory and up to 1.8 terabytes (TB) of combined SATA SSD storage to address increased demands in performance, software and data access. It supports extensive connectivity and bandwidth with features including an L2/L3 managed Gigabit Ethernet Switch with 11 externally available 10/100/1000BT ports. Designed for aircraft environments, this ARINC 600 4MCU form factor system also features 6 Rx/ 3 Tx ARINC 429 channels, six inputs and four outputs of discrete I/O all in a low power, light weight and natural convection cooled and sealed unit. For easy access and installation, the front panel of the Kontron ACE Flight 4600 features GSM USIM access, 2x removable SSDs, VGA, 2x RS-232, USB and 10/100/1000Base T ports. In addition, Linux and Windows operating systems are supported.
Specifications
- ARINC 600 4MCU, sealed unit with front removable SSDs
- Intel Core, i7 processor with 16GB DRAM
- internal Gigabit L2/L3 Managed Ethernet Switch
- qualified to DO-160F
- 4G LTE/HSPA+/EV-DO Modem
Datasheets
ACE Flight 4600 Datasheet (Release Candidate)�
[ ace-flight-4600-datasheet.pdf, 0.95 mb, Jun 25, 2015 ]
Manuals
Ace Flight Server User Manual [restrictions apply]
The Server is a network distribution system designed specifically for rugged airborne applications. The Server Unit includes a high-end dual core processor, a multi-port Gigabit Ethernet Switch, and removable mass storage for content. The Server can be used as head end component of an In-flight Entertainment System, data distribution system or other flight communication server applications.
[ ace-flight-4600_um_a.pdf, 1.75 mb, Jan 27, 2016 ]
Warranty
10-Day Inspection Period: If the ACE Flight 4600 purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.
30-Day Warranty: The 30-Day warranty for ACE Flight 4600 covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:
1. Repair
2. Replacement
3. Refund
** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**
All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.
Warranty Options:
Our Standard Warranty: Warranty may vary dependent on product and manufacturer.
No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.
Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
