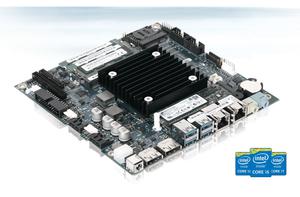

mITX-BDW-U - Kontron
Call for Price / Availability 888.528.9233
- Part:
- mITX-BDW-U
- Manufacturer:
- Kontron
- Description:
- Low power, IoT ready embedded mITX motherboard with 5th generation Intel 14nm Core I7, I5 & I3 processor
- Availability:
- Available: Submit request for datasheets and more information.
Digital Signage: Low profile, low power & multi�display support
Gaming/POS/POI: High graphics and high CPU�performance-to-power ratio
Industrial Automation: Wide range of I/Os & longevity
Future-oriented Devices: IoT support through�e. g. WWAN support. SATA and x2 PCIe SSD support in M.2 socket.
Specifications
- embedded mITX motherboard with up to 7 years availability
- thin profile, low power platform with 15W CPUs in 23mm envelope
- supporting 3 independent displays pipes via 2x DisplayPort and LVDS
- operating temperature range from 0�C to +60�C
- powered by 19V notebook-style power adapter or internal 12V connector
Features
| Form Factor | Thin Mini-ITX |
| Dimensions (H x W x D) | 6.7� x 6.7� (17,0 cm x 17,0 cm) |
| CPU | Supports: 5th Generation Intel 14nm Dual and Quad Core i7, i5, i3 up to 15W Intel Core i7-5650U, 2x 3.1GHz 15W Intel Core i5-5350U, 2x 2.9GHz 15W Intel Core i3-5010U, 2x 2.1GHz 15W |
| Chipset | Intel Broadwell PCH-LP on multi-chip package BGA with CPU |
| Main Memory | up to 16 GB SO-DIMM Socket DDR3L-1333/1066 (max. 2x 8 GB) |
| Front Side Bus | - |
| Graphics Controller | Intel Gen 8 HD Graphics 6000 OpenGL 4.0 |
| Graphics | 2x Display Port, up to 3840x2160 (1xHDMI by DP, up to 2560x1600) 1x LVDS 18/24bit, up to 1920x1200 Triple Display support |
| Ethernet Controller | 1x Intel Clarksville WGI218LM (supporting AMT 9.0) Intel Pearsonville I211AT |
| Ethernet | 2x Intel GB LAN (1x AMT 9.0 support) |
| Hard Disk | 2 x SATA (SATA 150/300/600) w. RAID 0,1 support (1x mSATA shared with mPCIe) |
| Parallel Port | n/a |
| Flash Onboard | - |
| PCI | n/a |
| PCI Express / PCI support | 1x PCIe x2 |
| Mini-PCI | 1x mini-PCI Express half/full w/ 2x USB 2.0 support |
| USB | 4x USB 3.0/2.0 4x USB 2.0 (2x Internal Header, 2x mPCIe socket) |
| Serial | 2x RS232 |
| Rear I/O | 19V notebook-style Power adapter 2x Display port 4x USB3.0/USB2.0 2x RJ45 LAN 2 x1 Audio Jack; Headset and Line In |
| Audio Controller | Realtek ALC662 HD Audio 5.1 channel SPDIF Out, microphone, headset, On-board speaker |
| Keyboard | PS/2 Keyboard/Mouse |
| Special Features | DAC up to 160 GPIO TPM KT embedded feature port with ADC SIM Card Connector No Tantalum capacitors on board |
| BIOS | Phoenix |
| Power Management | ACPI 4.0 ATX+12V PSU 4-pin on internal 2x2 pin connector; 19V Power |
| Operation Temperature | 0�C to 60�C (32�F to 140�F) |
| Operating System | Win7/Win8 32/64bit Linux |
| Compliance | EN 61000-4-2:2000 ESD Immunity EN 61000-4-4 Burst Immunity EN55022:2006+A1:2007 class B Generic Emission Standard IEC 60950-1: 2005, 2nd Edition UL 60950-1 CSA C22.2 No. 60950-1 IEC 60068-2-27 60068-2-29 60068-2-64 RoHS |
| MTBF | Theoretical MTBF: 365475 hours @ 30�C |
Datasheets
Datasheet-mITX-BDW-U
[ mitx-bdw-u.pdf, 1.22 mb, May 18, 2016 ]
Manuals
mITX BDW-U Userguide
[ mitx-bdw-u-user-guide-rev-1.2-2016-06-16.pdf, 5.42 mb, Jun 21, 2016 ]
Tech Spec Sheet
Tech Specs MINI-ITX
[ tech-spec_mini-itx.pdf, 0.52 mb, Feb 29, 2016 ]
Variants
| mITX -BDW -U i7-5650U 810610-4500 | | with Intel i7-5650U, 4M, up to 3.1 GHz, 15W; GT3, w. cooler | � |
| mITX -BDW -U i5-5350U 810611-4500 | | with Intel i5-5350U, 3M, up to 2.9 GHz, 15W; GT3, w. cooler | � |
| mITX -BDW -U i3-5010U 810612-4500 | | with Intel i3-5010U, 3M, up to 2.1 GHz, 15W; GT2, w. cooler | � |
Accessories
| DDR3L-1600 SODIMM 2GB 1060-2520 |  | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800 | � |
| DDR3L-1600 SODIMM 4GB 1060-2522 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800 | � |
| DDR3L-1600 SODIMM 8GB 1060-2524 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800 | � |
| LVDS Connector for cable 910000005 |  | LVDS Connector for cable | more |
