- COMe Eval Carrier T6
- Manufacturer:
- Kontron
- Description:
- COM Express Evaluation Carrier Type 6
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- COM Express Rev. 2.0, Pin-out Type 6
- ATX Form Factor (305mm x 244mm)
- VGA, LVDS, 2x DP, 1x DP on x16 PCIe
- USB 3.0, mPCIe, Express Card
Features
| Compliance | COM Express Rev. 2.0 Pin-out Type 6 |
| Dimensions (H x W x D) | 305 x 244 mm (ATX) |
| Supported Modules | COM Express basic or compact with pin-out Type 6 |
| Graphics | 1x LVDS/JILI FFC 40 connector 1x VGA 2x DP++ (DDI2/DDI3) 1x DP/HDMI/DVI/SDVO on ADD2 (DDI1, Adapter required) 1x PEG x16 for discrete Graphics |
| Hard Disk | 4x SATA 1x micro-SD |
| USB | 4x USB 3.0 2x USB 2.0 |
| PCI Express / PCI support | 1x PEG x16 slot 1x PCIe x16 (electrically x4) 2x PCIe x1 1x miniPCIe (with USB) 1x Express Card (with USB) |
| Audio | Realtek ALC888 HD-Audio S/PDIF in/out 7.1 audio jacks |
| Ethernet | 1x 10/100/1000 MBit RJ 45 connector |
| Serial | 2x UART on pin-header (from module) |
| Special Features | 1x PWM Fan from COM 2x FAN from Carrier HWM SPI and LPC boot |
| Common Features | Port80 POST Code Display Diagnostic LED PWR/RST Buttons |
| Options | Carrier EEPROM |
| Power Supply | ATX power supply 24+4pin |
| Temperature | Operation: 0� to 60�C Storage: -30� to 85�C |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
Datasheets
Starterkits and Evaluation Boards for COM Express, Datasheet (Release Candidate)�
Datasheet Starterkits and Evaluation Boards for COM Express.
[ datasheet_comexpress_evalboards-starterkits_web.pdf, 0.9 mb, Nov 7, 2014 ]
Manuals
User Guide COM Express Type 6 Evaluation Carrier Board (v1.1)
[ ug_comeevalt6_v1.1.pdf, 2.74 mb, Nov 27, 2013 ]
Variants
| COMe Eval Carrier T6 38106-0000-00-0 |  | COM Express Evaluation Carrier Type 6 | � |

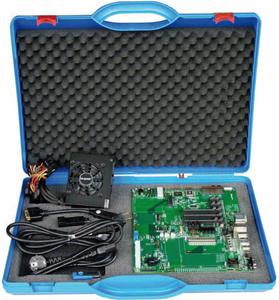

| COMe Starterkit Eval T6 38106-0000-00-S |  | Starterkit with COMe Evaluation Carrier T6 | more |
Accessories
| COMe Mount Kit 5mm 1set 38017-0000-00-5 | | COM Express Mounting Kit 5mm 1set for threaded HSP and Cooling Solutions | � |
| COMe Mount Kit 5mm 100sets 38017-0100-00-5 | | COM Express Mounting Kit 5mm 100 sets | � |
| ADA-LVDS-DVI 18Bit 9-5000-0352 | | 18bit LVDS (JILI) to DVI-D, including the flatfoil cable | � |
| ADA-LVDS-DVI 24Bit 9-5000-0353 | | 24bit LVDS (JILI) to DVI-D, including the flatfoil cable | � |

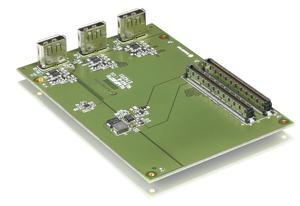

| ADA-Type6-DP3 96007-0000-00-7 |  | COM Express Type 6 carrier board adapter for 3x DDI to 3x DisplayPort + 1x eDP | � |
| ADA-PCIe-DP 96007-0000-00-3 | | DisplayPort Slot Adapter for DDI1 (x16 PCIe Port to DP) on COMe Eval Carrier T6 | � |

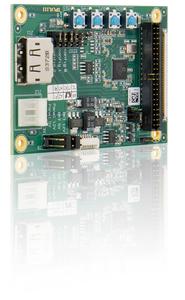

| ADA-DP-LVDS 96006-0000-00-8 |  | Converts DisplayPort to LVDS | � |
| KAB-ADAPT-DP-HDMI 96084-0000-00-0 | | Displayport to HDMI Adapter | � |
| KAB-ADAPT-DP-VGA 96083-0000-00-0 | | Displayport to VGA Adapter | � |
| KAB-ADAPT-DP-DVI 96082-0000-00-0 | | Displayport to DVI Adapter | � |
