- Part:
- CP6004-RA_RC
- Manufacturer:
- Kontron
- Description:

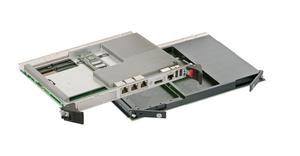

- CPCI/PICMG 2.16 Intel Core, i7 Third Generation System/Peripheral CPU Rugged Air, Rugged Conduction Cooled
- Availability:
- Available: Submit request for datasheets and more information.
Based on the Intel Core, i7 third generation processor and the QM77 platform controller hub, the CP6004-RA/RC is featured by dual or quad core computing performance at a reasonable thermal design power, including a complete set of data, communication and multimedia interfaces.
The CP6004-RA version is designed for harsh application requirements in air-cooled environments, where the CP6004-RC is made for conduction cooled environments.
With the 2.1 GHz Intel Core, i7-3612QE and the LV 2.5 GHz Intel Core,i7-3555LE, the CP6004-RA/RC has extraordinary performance per watt values. Up to 16 GByte of soldered DDR3 1600 MHz memory with ECC provide the foundation of demanding software applications.
Based on the Intel Mobile QM77 I/O controller hub the CP6004-RA/RC provides high graphics performance for VGA and two independent digital video outputs to the rear I/O as well as HDA audio capabilities.
Besides the outstanding graphics performance, the CP6004-RA/RC offers comprehensive I/O capability with up to 5x 1Gb Ethernet, 4 x rear I/O SATA with RAID 0/1/5/10 functionality, a local SATA Flash disk connector, as well as 6x USB 2.0, 2 x COM.
It can also accommodate a conduction cooled PMC/XMC slot for I/O intensive applications.
The board provides safety and security via an optional trusted platform module, (TPM 1.2), two redundant firmware hubs (failover) and IPMI support according PICMG 2.9 R1.0.
If you need more information about sytems or PMC/XMC modules, please follow the links systems or PMC/XMC
Specifications
- 4HP, single slot quad or dual core CPU rugged air or conduction cooled
- Scalable processor speed, Intel Core, i7 3rd generation up to 2.5 GHz
- Up to 16GB DDR3 1600 MHz soldered memory with ECC
- Up to 5x GigEthernet Interfaces via PCIExpress
- Latest IO technology with SATA Gen 3, RAID, SSD
- XMC/PMC + SSD Flash configuration possible
- Rear I/O supporting PICMG 2.16
Datasheets
CP6004-RA/RC Data Sheet
Intel 3rd generation Core i7 rugged air cooled or conduction cooled processor board.
[ datasheet_cp6004-ra_rc.pdf, 0.81 mb, May 11, 2016 ]
Manuals
CP6004-RA/RC Introduction Manual
[ 1055-1509_10_sk-man-cp6004-ra_cp6004-rc_introduction.pdf, 0.27 mb, Nov 27, 2013 ]
CP6004-SA/RA/RC / CP6004X-SA uEFI BIOS Manual [restrictions apply]
[ 1053-6161_30_sk-man-uefi-bios-cp6004-sa_-ra_-rc_cp6004x-sa.pdf, 0.28 mb, Nov 27, 2013 ]
CP6004-RA/RC User Manual [restrictions apply]
[ 1055-1509_10_sk-man-cp6004-ra_cp6004-rc.pdf, 1.14 mb, Nov 27, 2013 ]
CP6004-SA/RA/RC / CP6004X-SA IPMI Firmware User Manual [restrictions apply]
[ 1053-0139_30_sk-man-cp6004-sa_-ra_-rc_cp6004x-sa-ipmi-fw.pdf, 0.23 mb, Nov 27, 2013 ]
