PCI-761 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- PCI-761
- Manufacturer:
- Kontron
- Description:
- Intel Pentium and Core, i3/i5/i7 processor
- Availability:
- Available: Submit request for datasheets and more information.

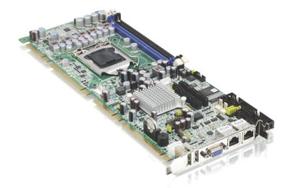

The PCI-761 combines Intel��s Core, i3/i5/i7 processor, with the Q57 chipset to deliver outstanding performance and bandwidth. It allows you to set the pace with innovative applications today while the PCI-Express on edge connector offers enough I/O headroom for emerging next generation requirements. The PCI-761 minimizes deployment risks through a broad range of software support. This eases the process of product integration and maximizes your competitive advantage to meet your time-to-market window.
Connected
Connectivity based on highly sophisticated communication technology and remote management is the key requirement for being competitive in a wide range of networking applications.
By providing 12 high-speed USB 2.0 channels and two Gigabit Ethernet interfaces, the PCI-761 supports comprehensive connectivity features at full bandwidth.
Specifications
- Intel Pentium and Core, i3/i5/i7 processor
- Intel Q57 chipset
- Intel Matrix Storage Technology
- Intel Graphics Media Accelerator 4500
- 2x Gigabit LAN
- Up to 8 GB DDR-III memory
- HD Audio
- 6x Serial ATA (SATA-II) 3 Gb/s
Features
| CPU | Intel Pentium and Core, i3/i5/i7 processor (LGA1156) |
| Main Memory | 8GB DDR3 |
| Ethernet | 2x 10/100/1000 base-T |
| Graphics Controller | GMA 4500 (Intel HD Graphics) |
| Flash Disk | none |
| SATA | 6x SATA-II |
| RAID | RAID 0,1, 5, and 10 |
Datasheets
PCI-761 Datasheet
[ datasheet_pci-761.pdf, 0.56 mb, Jan 20, 2015 ]
Manuals
PCI-761 manual Version 1.01 (Release Candidate)�
[ 110428_man_pci_761_v1_01.pdf, 4.19 mb, Nov 27, 2013 ]
