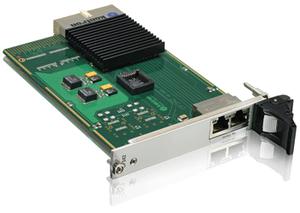

CP342 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP342
- Manufacturer:
- Kontron
- Description:
- Dual Independent Gigabit Ethernet Adapter
- Availability:
- Available: Submit request for datasheets and more information.
The optional flash device provides CP342 with the ability to boot remotely via PXE-boot from another system's OS over the connected network. The used controller supports Jumbo frames with up to 16KB for large data transfers and high throughput. IP, TCP and UDP checksum off-loading capabilities increase the throughput even more and lowers CPU utilization. The CP342 is capable of adapter teaming using the appropriate driver software.
Specifications
- Dual Gigabit Ethernet NIC
- IEEE802.3x compliant
- Copper with RJ45 or Fiber with SFP connection
- Remote PXE boot from Flash option
- Automatic speed sensing and switching
Features
| Frontpanel | 2x RJ45 or 2x SFP |
| Function | two 10/100/1000Base-Tx or two 1000BaseFX |
| Data Rate | up to Gigabit Ethernet |
| Channels | 2 |
| Controller | Intel 82546GB |
| Power Consumption | 5.6 W / typ. |
| Operation Temperature | -40�C to +85�C |
Datasheets
CP342 Datasheet
[ ds_cp342.pdf, 1.39 mb, Sep 25, 2015 ]
Manuals
Manual
[ cp342_manual.pdf, 0.42 mb, Nov 27, 2013 ]
Warranty
10-Day Inspection Period: If the CP342 purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.
30-Day Warranty: The 30-Day warranty for CP342 covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:
1. Repair
2. Replacement
3. Refund
** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**
All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.
Warranty Options:
Our Standard Warranty: Warranty may vary dependent on product and manufacturer.
No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.
Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
