COMe-cBT6 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- COMe-cBT6
- Manufacturer:
- Kontron
- Description:
- COM Express compact Type 6
- Availability:
- Available: Submit request for datasheets and more information.

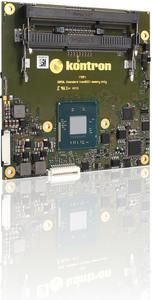

The standard design of the COM Express compact modules �� Kontron COMe-cBT6 �� supports the entire portfolio of the Intel Atom, E3800 processors (COMe-cBTi6) and Intel Celeron processors N2800/N2900 and J1900 (COMe-cBTc6), whereby the E3800 variants are designed for the extended temperature range of -40�C to +85�C.
The memory of up to 2x 4 GB has been laid out as dual-channel DDR3L SODIMM. With eMMC Flash, SD card slot and 2x SATA, ample storage options for OS and application code are available. Substantial USB support is also offered with 1x USB 3.0 and up to 8x USB 2.0.�
Specifications
- Intel Atom, E3800 & Celeron Series
- Up to 2x4GB DDR3L SODIMM dual channel
- Up to 8x USB 2.0, 1x USB 3.0, eMMC Flash, 2x SATA, SD-Card
- Commercial & Industrial Grade Temperature
Features
| Compliance | COM Express compact, Pin-out Type 6 |
| Dimensions (H x W x D) | 95 x 95 mm |
| CPU | COMe-cBTi6: Intel Atom, E3845 (4x1.91GHz, 10W) Intel Atom, E3827 (2x1.75GHz, 8W) Intel Atom, E3826 (2x1.46GHz, 7W) Intel Atom, E3825 (2x1.33GHz, 6W) Intel Atom, E3815 (1x1.46GHz, 5W) COMe-cBTc6: Intel Celeron J1900 (4x2.00GHz, 10W) Intel Celeron N2930 (4x1.83GHz, 7.5W) Intel Celeron N2807 (2x1.58GHz, 4.5W) Intel Atom, E3815 (1x1.46GHz, 5W) |
| Chipset | - |
| Main Memory | 2x DDR3L-1066/1333 SODIMM up to 2x4GB |
| Graphics Controller | Intel HD Graphics (Gen7) |
| Ethernet Controller | COMe-cBTi6: Intel I210IT COMe-cBTc6: Intel I211AT |
| Ethernet | 10/100/1000 MBit Ethernet |
| Hard Disk | 2x SATA 3Gb/s |
| Flash Onboard | 2 - 64GB eMMC & 1x microSD Socket (with E3800 CPU only) |
| PCI Express / PCI support | 3x PCIe x1 |
| Panel signal | DDI1: DP++ DDI2: DP++ (shared w/LVDS) DDI3: - VGA: Yes LVDS: Dual Channel 18/24bit |
| USB | 1x USB 3.0 (incl. USB 2.0) 3x USB 2.0 from CPU 4x USB 2.0 from HSIC Hub (on COMe-cBTi6 only) |
| Serial | 2x serial interface (RX/TX only) |
| Audio | Intel High Definition Audio |
| Common Features | SPI, LPC, SMB, Fast I_C, Staged Watchdog, RTC, MARS |
| BIOS | Phoenix Secure Core UEFI |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
| Options | 1x PCIe x1 additional w/o onboard LAN Trusted Platform Module TPM 1.2 eMMC Flash onboard (2-32GB SLC, 4-64GB MLC) AES-NI |
| Power Management | ACPI, S5 Eco |
| Power Supply | 4.75V �� 20V Wide Range, Single Supply Power |
| Special Features | POSCAP capacitors LVDS/DP Multiplexer |
| Operating System | Windows 8, Windows 7, WE8S, WES7, WEC7, Linux, VxWorks |
| Temperature | Commercial temperature (COMe-cBTc6): # 0�C to +60�C operating, -30�C to +85�C non-operating Industrial temperature (COMe-cBTi6): # -40�C to +85�C operating, -40�C to +85�C non-operating |
| Supported Modules | 36015-xxxx-xx-x: COMe-cBTi6, industrial temperature 36017-xxxx-xx-x: COMe-cBTc6, commercial temperature |
Datasheets
Datasheet COMe-cBT6
[ datasheet_come-cbt6.pdf, 1.21 mb, Sep 4, 2015 ]
Manuals
User's Guide COMe-cBT6
[ cvv6m110.pdf, 1.18 mb, Jan 16, 2015 ]
Tech Spec Sheet
COM EXPRESS compact
[ tech-spec_comexpress-compact.pdf, 0.52 mb, Feb 29, 2016 ]
Variants
| COMe-cBTi6 E3845 16GB 36015-0016-19-4 |  | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, E3845 4x1.91GHz, 2xDDR3L-SODIMM, 16GB eMMC (MLC), TPM, mSD, i210IT LAN, USB Hub, industrial grade | � |
| COMe-cBTi6 E3845 36015-0000-19-4 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, E3845 4x1.91GHz, 2xDDR3L-SODIMM, mSD, i210IT LAN, USB Hub, industrial grade | � |
| COMe-cBTi6 E3827 36015-0000-17-2 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, E3827 2x1.75GHz, 2xDDR3L-SODIMM, mSD, i210IT LAN, USB Hub, industrial grade | � |
| COMe-cBTi6 E3826 36015-0000-15-2 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, E3826 2x1.46GHz, 2xDDR3L-SODIMM, mSD, i210IT LAN, USB Hub, industrial grade | � |
| COMe-cBTi6 E3825 36015-0000-13-2 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, E3825 2x1.33GHz, 1xDDR3L-SODIMM, mSD, i210IT LAN, USB Hub, industrial grade | � |
| COMe-cBTi6 E3815 36015-0000-15-1 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, E3815 1x1.46GHz, 1xDDR3L-SODIMM, mSD, i210IT LAN, USB Hub, industrial grade | � |
| COMe-cBTc6 J1900 36017-0000-20-4 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Celeron J1900 4x2.00GHz, 2xDDR3L-SODIMM, i211AT LAN, commercial grade | � |
| COMe-cBTc6 N2930 36017-0000-18-4 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Celeron N2930 4x1.83GHz, 2xDDR3L-SODIMM, i211AT LAN, commercial grade | � |
| COMe-cBTc6 N2807 36017-0000-16-2 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Celeron N2807 2x1.58GHz, 1xDDR3L-SODIMM, i211AT LAN, commercial grade | � |
| COMe-cBTc6 E3815 36017-0000-15-1 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, E3815 1x1.46GHz,1xDDR3L-SODIMM, mSD, i211AT LAN, commercial grade | � |
Accessories
| COMe Eval Carrier T6 38106-0000-00-0 |  | COM Express Evaluation Carrier Type 6 | more |
| COMe Ref.Carrier T6 38114-0000-00-0 |  | COM Express Reference Carrier Type 6 | more |
| HSP COMe-cBT6 thread 36015-0000-99-0 | | Heatspreader for COMe-cBT6, threaded mounting holes | � |
| HSP COMe-cBT6 through 36015-0000-99-1 | | Heatspreader for COMe-cBT6, through holes | � |
| COMe Active Uni Cooler (w/o HSP) 36099-0000-99-0 | | COM Express Universal Active Cooler for Heatspreader Mounting (87x78x14.3mm) (for CPU's | � |
| COMe Passive Uni Cooler (w/o HSP) 36099-0000-99-1 | | COM Express Universal Passive Cooler for Heatspreader Mounting (87x78x14.3mm) (for CPU's | � |
| KAB-HSP 200mm 96079-0000-00-0 | | Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 200mm | � |
| KAB-HSP 40mm 96079-0000-00-2 | | Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 40mm | � |
| COMe Mount Kit 5mm 1set 38017-0000-00-5 | | COM Express Mounting Kit 5mm 1set for threaded HSP and Cooling Solutions | � |
| COMe Mount Kit 5mm 100sets 38017-0100-00-5 | | COM Express Mounting Kit 5mm 100 sets | � |
| COMe Mount KIT 8mm 1set 38017-0000-00-0 | | COM Express Mounting Kit 8mm 1set for threaded HSP and Cooling Solutions | � |
| COMe Mount Kit 8mm 100sets 38017-0100-00-0 | | COM Express Mounting Kit 8mm 100sets | � |
| DDR3L-1600 SODIMM 1GB 97015-1024-16-1 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800 | � |
| DDR3L-1600 SODIMM 2GB 97015-2048-16-1 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800 | � |
| DDR3L-1600 SODIMM 4GB 97015-4096-16-1 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800 | � |
| DDR3L-1600 SODIMM 1GB E2 97015-1024-16-3 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C | � |
| DDR3L-1600 SODIMM 2GB E2 97015-2048-16-3 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C | � |
| DDR3L-1600 SODIMM 4GB E2 97015-4096-16-3 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C | � |
