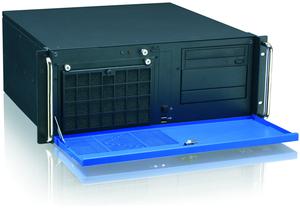

KISS 4U Short KTQ67Flex - Kontron
Call for Price / Availability 888.528.9233
- Part:
- KISS 4U Short KTQ67Flex
- Manufacturer:
- Kontron
- Description:
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- Just 300mm deep
- extended Operating temperature
- Extended warranty
- Supporting Sandybrige 2nd Gen CPUs
- 2 x 5,25' Drive bays
- Hot swap Chassis Fans
- AC PSU 400 W 80+, optional DC24V or DC 48 V
- Maximum length add on cards 222 mm
Features
| CPU | Intel i3-2120 3,3GHz,Intel i5-2400 3,1GHz,Intel i7-2600 3,4GHz |
| Chipset | Intel Q67 Chipset |
| Approvals | CE designed to meet UL |
| Cooling | 2* Hot swap chassis fans |
| Dimensions (H x W x D) | 4U x 19inch x 472 mm |
| Drives | 1*3,5 bay , 2*5,25 bay, 1* Slim bay, Slim bay used for internal HDD |
| Free Slots | 2* PCI 32 bit, 1 x PCI_e x 16, 1 x PCI_e x 4 |
| Connectivity | Front: 2* USB 2.0, REAR: 2* COM,VGA,2* Displayport,HD Audio,6* USB 2.0, 3* LAN 10/100/1000 |
| Front Side Bus | 800/1066/1333 MHz |
| Main Memory | Up to 16 GB DDR 3 |
| Mounting | Rack Mount, Desktop, Tower |
| Power Supply | 115/230V AC 400 W 80+, optional 24 VDC or 48VDC |
| RAID | on Board RAID 0, 1, 5 and 10, KISS Stor, KISS DA with RAIDcontroller |
| System Monitoring | By PCCM |
| Temperature | Operating: 0-50 Degrees/C |
| Verified OS | WIN XP, Windows 7 32 Bit, Windows 7 64 Bit, Linux |
| Weight | ~ 12 kg |
Datasheets
Datasheet KISS 4U Short KTQ67/Flex
[ datasheet-kiss-4u-short_ktq67flex.pdf, 0.72 mb, Jan 20, 2015 ]
Manuals
Benutzerhandbuch KISS 4U Short V2
[ kiss_4u_short_v2_benutzerhandbuch_v1_01_de_web.pdf, 1.75 mb, Nov 27, 2013 ]
User Guide KISS 4U Short V2
[ kiss_4u_short_v2_user_guide_v1_01_en_web.pdf, 1.77 mb, Nov 27, 2013 ]
Tech Spec Sheet
Tech Specs KISS
[ tech-specs-kiss.pdf, 0.51 mb, Feb 29, 2016 ]
Variants
| KISS Stor 1 KISS Stor 1 |  | Integrated Industrial Raid 1 Subsystem for KISS 4U and KISS 4 U Short | more |
| KISS DA425 KISS DA425 |  | Disk Array for 4x 2.5' Hard drives | more |
| KISS DA335 KISS DA335 |  | This drive enclosure converts 2 x 5.25' drive bay to 3 x 3.5' hot-swap bays, supporting SATA interface. | more |
| KISS DA135 KISS DA135 |  | Rugged removable HDD carrier | more |
| EASY USB to RS232 |  | USB to RS232 converter non isolated | more |
| KISS DA225 KISS DA225 |  | SAS/SATA two in one | more |
