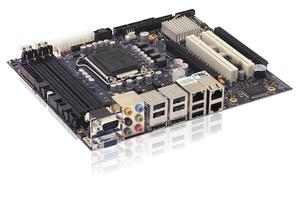

KTQ67/FLEX - Kontron
Call for Price / Availability 888.528.9233
- Part:
- KTQ67/FLEX
- Manufacturer:
- Kontron
- Description:
- Embedded FLEX-ATX Motherboard with 2nd Generation Intel i7-,i5,-i3 2Core and 4Core CPUs & Intel Q67 Chipset
- Availability:
- Available: Submit request for datasheets and more information.
NEW: There is a version designed for the requirements of the medical market availabe as well:
Main differences to standard KTQ67/FLEX board:
� 2 x isolated LAN (no 3rd port)
� No Display Port
� No MiniPCIe/ no mSATA
� 4 x SATA
� No LVDS
Name: KTQ67/FLEX Medical
P/N: 810460-4500
Specifications
- 2nd Generation Intel i7-,i5,-i3 2Core and 4Core CPUs &
- Intel Q67 Chipset
- Long term available embedded FLEX-ATX motherboard (up to 7 years after release)
- High CPU and graphics performance
- Up to 32 GB DDR3 RAM
- 6 x SATA, 14 x USB 2.0, 3 x GbE-LAN with incl. Intel AMT 7.0
- 2 x Display Port for flexible, high resolution display drive
- mSATA interface for compact SSD storage
- Multi purpose KT Feature Connector
- Gen 2.0 PCIe x16 & PCIe x4 & 2 x PCI 32bits/33MHz
Features
| Form Factor | Flex-ATX |
| Dimensions (H x W x D) | 9' x 7,5' 22,86 cm x 19,05 cm |
| CPU | Supports: 2nd Generation Intel i7-,i5,-i3 2 Core and 4 Core CPUs; Intel Celeron Processor Intel Celeron G540, 2.5GHz, dual Core, 65W Intel Pentium G850, 2.90GHz, dual Core, 65W Intel Core i3-2120 Processor, 3.30GHz, dual Core, 65W Intel Core i5-2400 Processor, 3,10GHz, quad Core, 95W Intel Core i7-2600 Processor, 3,40GHz, quad Core, 95W |
| Chipset | Intel Q67 |
| Main Memory | Up to 32 GB DDR3 (max. 4x 8 GB) |
| Front Side Bus | Up to 20 Gb/s each direction, full duplex DMI 2.0 interface to PCH Four lanes in each direction |
| Graphics Controller | Intel HD Graphics 2000/3000 integrated |
| Graphics | 2x Display port 1x CRT 1X LVDS (optional) (1x PCIe x16) |
| Ethernet Controller | 1x Lewisville 82579LM 1x Intel Hartwell 82574L |
| Ethernet | 3 x GbE-LAN (1x Intel AMT 7.0) |
| Hard Disk | 6 x SATA (4x SATA150/300 and 2x SATA600) w. RAID 0,1,5,10 support 1x mSATA |
| Parallel Port | LPT Parallel port in FFC connector |
| Flash Onboard | n/a |
| PCI | 2x PCI 32bits/33MHz |
| PCI Express / PCI support | 1x PCIe x16 1x PCIe x4 (In x16 connector) |
| Mini-PCI | 1x Mini-PCIe |
| USB | 14 x port USB 2.0 |
| IEEE 1394 Firewire |
| Serial | 4x RS232 |
| Rear I/O | 1x serial port 2x Display port 1x VGA 6x USB 3x RJ45 LAN 1x Audio stacked 2x3 mini Jack tower |
| Audio Controller | VIA 1708B 7.1 Channel HD Audio stacked 2x3 mini Jack tower |
| Keyboard | PS2 Mouse/Keyboard internal connector |
| Special Features | DAC up to 160 GPIO TPM 1.2 support KT embedded feature connector with ADC Watchdog |
| BIOS | AMI |
| Power Management | ACPI 3.0 |
| Operation Temperature | 0�C - 60�C (32�F - 140�F) |
| Operating System | WES7 32/64bit Linux VxWorks |
| Compliance |
Datasheets
Datasheet KTQ67/FLEX
[ ktq67-motherboard-family.pdf, 1 mb, Jan 14, 2015 ]
KTQ67/FLEX -MEDICAL
KTQ67/FLEX-Version designed for the requirements of the medical market
[ datasheet-ktq67-flex-medical.pdf-2, 0.94 mb, Nov 27, 2013 ]
Manuals
KTQ67 Users Guide
[ ktd-n0829-h_ktq67-users-guide.pdf, 4.4 mb, May 17, 2016 ]
Variants
| KTQ67/FLEX 810440-4500 | | Embedded FLEX-ATX Motherboard with 2nd Generation Intel i7-,i5,-i3 2Core and 4Core CPUs & Intel Q67 Chipset | more |
| Intel Celeron G540 1046-5588 |  | Intel Celeron G540, 2.5GHz, dual Core, 2MB Cache, 65W; FCLGA1155, Embedded | � |
| Intel Pentium G850 1044-7736 | | Intel Pentium G850, 2.90GHz, dual Core, 3MB Cache, 65W, LGA1155, Embedded | � |
| Intel Core i3-2120 Processor 1044-7678 | | Intel Core i3-2120 Processor, 3.30GHz, dual Core, 3MB Cache, 65W, FCLGA1155, Embedded | � |
| Intel Core i5-2400 Processor 1044-7735 | | Intel Core i5-2400 Processor, 3,10GHz, quad Core, 6MB Cache, 95W, LGA1155, Embedded | � |
| Intel Core i7-2600 Processor 1044-7654 | | Intel Core i7-2600 Processor, 3,40GHz, quad Core, 8MB Cache, 95W, LGA1155, Embedded | � |
Accessories
| DDR3, 1GB, 1066MHZ, PC3-8500 DIMM 1054-2766 | | DDR3, 1GB, 240P, 1066MHZ, PC3-8500 DIMM | � |
| DDR3-1333 DIMM 1GB ECC 1060-2476 | | DDR3, 1GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3, 1GB, 1600MHZ 1054-3706 | | DDR3, 1GB, 240P, 1600MHZ, PC3-12800 DIMM | � |
| DDR3, 2GB, 1066MHZ, PC3-8500 DIMM 1054-2768 | | DDR3, 2GB, 240P, 1066MHZ, PC3-8500 DIMM | � |
| DDR3-1333 DIMM 2GB 1060-2492 | | DDR3, 2GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1600 DIMM 2GB 1060-2498 | | DDR3, 2GB, 240P, 1600MHZ, PC3-12800 DIMM | � |
| DDR3-1066 DIMM 4GB 1060-2490 | | DDR3, 4GB, 240P, 1066MHZ, PC3-8500 DIMM | � |
| DDR3-1333 DIMM 4GB 1060-2494 | | DDR3, 4GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1600 DIMM 4GB 1060-2500 | | DDR3, 4GB, 240P, 1600MHZ, PC3-12800 DIMM | � |
| DDR3-1333 DIMM 8GB 1060-2496 | | DDR3, 8GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1600 DIMM 8GB 1060-2488 | | DDR3, 8GB, 240p, 1600MHZ, PC3-12800 DIMM | � |

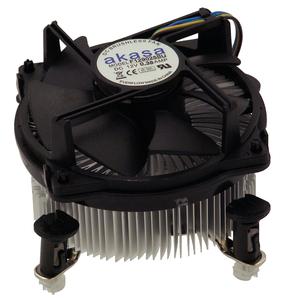

| Active Cooler for KTQ67/ KTQ77 / KTQ87/ KTH81 1046-6305 |  | Active Cooler for Socket H2 (LGA1155) ZIF Socket CPU | more |
| Accessory kit for KTQ67, KTQ77 826599 | | 3x COM cable (2.54mm, 100mm), 1x 6-Pin to PS2-Kbd-Mse cable, 1x Front Panel Open-End cable, 1x Audio Open-End cable, 6x SATA cable (500mm), 4x Cable+Bracket (USB, 10poled), Feature 44pol 1 to 1 cable (300mm), SW Man&Driver CD | � |
| COM port Cable, 100mm 821017 |  | COM port Cable, 2.54mm, 100mm long | more |
| COM port Cable, 200mm 821016 | | COM port cable, 2.54mm, 200mm long | � |
| SATA Cable 500mm 821035 |  | SATA Cable 500mm long | more |
| Front Panel Open-End Cable 821042 |  | Front Panel Open-End Cable | more |
| Audio Open-End Cable 821043 |  | Audio Open-End Cable | more |
| DP to VGA Adapter 1045-5779 | | DP to VGA Adapter | � |
| DP to DVI Adapter 1045-5780 | | DP to DVI Adapter | � |
| DVI-CRT Adapter 822001 | | DVI-CRT adapter | � |
| Cable COM2 100mm Bracket 821036 | | Cable COM2 100mm Bracket | more |
| USB Bracket 821401 |  | USB Bracket | more |
| LVDS Connector for cable 910000005 |  | LVDS Connector for cable | more |
