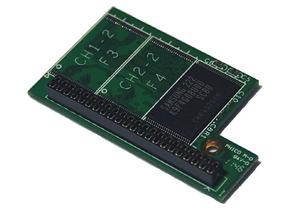

chipDISK-IDE - Kontron
Call for Price / Availability 888.528.9233
- Part:
- chipDISK-IDE
- Manufacturer:
- Kontron
- Description:
- chipDISK, IDE compatible flash harddisk with 1GByte
- Availability:
- Available: Submit request for datasheets and more information.
The chipDISK is based upon FLASH-TECHNOLOGY and is absolutely insensitive to tremors, vibrations, impacts, fluctuations in temperature and magnetic fields. The chipDISK is therefore best suited for use in mobile equipment and systems which need to withstand severe influences. The minimal mechanical measurement allow its employment in very compact pieces of equipment.
The power consumption of the chipDISK is only a fraction of that needed by a 'normal' harddisk which therefore considerably lengthens its amount of potential operation time. A hard disk controller is integrated in the chipDISK which insures the complete compatibility with a 'normal' harddisk on one hand, and which conducts the organisation of the flash-components on the other. Potential defects in the flash-cells are automatically recognized and dealt with accordingly.
Data protection is therefore considerably heightened. A special writing procedure working in connection with the cache memory considerably increases the slow writing speed that flash-components are known to have. The chipDISK is designed to be directly plugged (without a cable) onto a 2 mm pin rail with the pin cover of a 2.5' IDE-hard disk. The chipDISK-IDE can be directly employed on most Kontron MOPS PC/104-CPU modules
Specifications
- Full IDE compatible flash harddisk with 1 GByte
- Absolutely insensitive to tremors, vibrations, impacts, fluctuations in temperature and magnetic fields.
- Minimal mechanical measurement
- Firmly lockable on MOPS PC/104
- On 44 pin IDE port
Manuals
Manual chipDISK-IDE
[ ktd-s0050-c_chipdisk1000-ide_usersguide.pdf, 0.24 mb, Nov 27, 2013 ]
Variants
| chipDISK/1000-IDE 08001-1000-00-1 |  | chipDISK/1000-IDE, IDE compatible flash harddisk with 1GByte | � |
| chipDISK/512-IDE 08001-0512-00-0 | | chipDISK/512-IDE, IDE compatible flash harddisk with 512MByte | � |

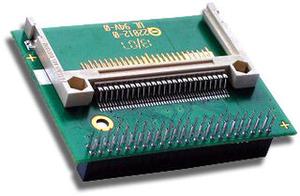

| CF-CARD-Adapter MOPSlcdLX 40404 |  | CF-CARD to IDE (44pin) interface | more |

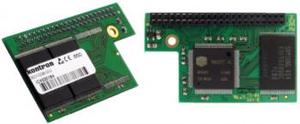

| chipDISK/32-IDE 08001-0032-00-0 |  | chipDISK/32-IDE, IDE compatible flash harddisk with 32MByte | more |
