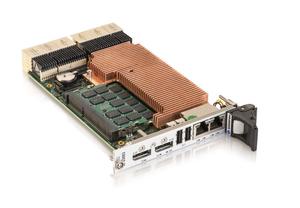

CPS3003-SA - Kontron
Test Report Included for CPS3003-SA
Part:
CPS3003-SA
Manufacturer:
Kontron
Description:
3rd Gen. Intel Core, i7 3U CPCI-S.0 CPU Board
Availability:
Available: Submit request for datasheets and more information.
The CPS3003-SA is a highly integrated 3U CPCI-S.0 CPU board based on Intel۪s 3rd Generation Core, i7 technology. The CPU board comes with a multi-core CPU package scalable from the dual-core ULV 1.7 GHz Intel Core, i7-3517UE up to the quad-core 2.1 GHz i7-3612QE processor.
The powerful PCH Intel QM77 provides a huge number of interfaces which are either routed to front, onboard or backplane connectors. Memory-demanding applications can make use of up to 16GB 1600MHz DDR3 SDRAM with Error Checking and Correction (ECC). As additonal security feature the CPS3003-SA provides a Trusted Platform Module (TPM).
For graphics intensive applications the CPS3003-SA offers an excellent graphics performance with integrated DirectX11, OpenGL 3.1 and OpenCL 1.1 support. Additionally, now three independent graphics outputs are supported.
Communication interfaces available on the front panel are two DisplayPort, two USB 2.0 and two Gigabit Ethernet ports. Serial interfaces available on the backplane connectors P1 to P5 are eight USB ports, four SATA interfaces and 17x PCI Express links. Additonal interfaces available on the P6 backplane connector are two Gigabit Ethernet interfaces, two USB ports, one DisplayPort and two serial ports.

Specifications

  • Latest Intel Core, technology, quad- and dual-core processors
  • Up to 16 GB 1600 MHz DDR3 SDRAM with ECC
  • Up to 32 GB SATA NAND Flash
  • Latest high-speed interconnects - SATA 6 Gb/s, USB 3.0 and PCI Express 3.0
  • Up to 3x independent graphics outputs
  • Various expansion options
  • Rear I/O option via P6 backplane connector
  • TPM support
  • Version for extended temperature range E2 (-40�C up to +85�C)
  • Broad range of software support: Linux, VxWorks, Windows XP, Windows 7, Windows Embbeded Standard 7 ...

Datasheets

Datasheet CPS3003-SA
[ ds_cps3003-sa.pdf, 3.97 mb, Sep 25, 2015 ]

Manuals

CPS3003-SA Introduction Manual
[ 1054-3213_20_sk-man-cps3003-sa_introduction.pdf, 0.61 mb, Feb 24, 2014 ]

CPS3003-SA User Manual [restrictions apply]
[ 1054-3213_20_sk-man-cps3003-sa.pdf, 1.77 mb, Feb 24, 2014 ]

Warranty

10-Day Inspection Period: If the CPS3003-SA purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.

30-Day Warranty: The 30-Day warranty for CPS3003-SA covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:

1. Repair

2. Replacement

3. Refund

** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**

All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.

Warranty Options:

Our Standard Warranty: Warranty may vary dependent on product and manufacturer.

No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.

Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
