PMC253 - Kontron
Test Report Included for PMC253
Part:
PMC253
Manufacturer:
Kontron
Description:
Advanced Profibus PMC Controller for Fieldbus Applications
Availability:
Available: Submit request for datasheets and more information.

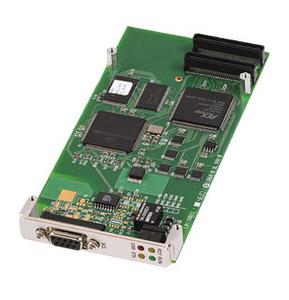

The PMC253 is an advanced industrial Profibus controller powered by the high performance communications System on Chip EC-1 incorporating state of the art Siemens microcontroller and ASPC-2 technology. The PMC253
has software support for the following: Windows, Linux, VxWorks and the Profibus system configurator SyCon.

Specifications

  • Highly integrated EC-1 ASIC with ASPC-2 technology
  • Profibus DP V1 master (class 1/2)
  • Up to 12 MBaud transfer rate
  • Optoisolated RS485 PROFIBUS interface
  • Easy to use software interface, OPC server and system configurator
  • From the leading manufacturer of fieldbus modules Hilscher GmbH

Features

Frontpanel 9 pin D-Sub for fieldbus connection
Function Profibus DP V1 Master
Data Rate up to 12 MBit/sec.
Signals RS485
FIFO -
Controller EC-1 System on Chip

Datasheets

Datasheet
[ ds_pmc253_feb12.pdf, 0.95 mb, Nov 27, 2013 ]

Variants

CP390
CP390
CP390 3U CompactPCI PMC Carrier for one PMC module more
