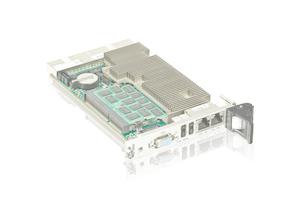

CP3004-SA - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP3004-SA
- Manufacturer:
- Kontron
- Description:
- 5th Generation Intel Core, 3U CompactPCI CPU Board
- Availability:
- Available: Submit request for datasheets and more information.
With CP3004-SA, the fifth Generation of Intel Core, technology has been made available in Kontron۪s CompactPCI product portfolio. The high density design offers extraordinary performance-per-watt values, based on the 14 nanometer technology, and is an ideal backbone for powerful network-intensive applications providing virtualization (VT-X, VT-D) and highest graphics performance. The new-generation graphics controller has up to 40 execution units providing OpenCL 1.2 / OpenGL 4 and triple independent display support. The Intel Advanced Vector Extensions AVX 2.0 enhancements provide a huge performance improvement in floating-point-intensive computations, which are a key part of digital signal and image processing applications.
CP3004-SA is prepared to be used in demanding and harsh environments,�designed according to the shock and vibration requirements of VITA47 EAC3. Extended temperature versions are available.�Dual-Core versions (4th gen CPU) provide for low heat dissipation. The processor۪s TDP can be adjusted dynamically to a desired performance and power envelope. Typical applications can be found in the markets
м Military/Defence: radar, sonar, general
м Industrial Automation: plant control, machine control
м Energy: demanding environments, cole, oil&gas
м Transportation: long lasting and reliable systems
Long term availability and Kontron۪s commitment to a rich CompactPCI portfolio make CP3004-SA a safe investment with low total-cost-of-ownership.
Specifications
- High performance range, high-end graphics, high connectivity, rugged
- Core, i7 Quadcore and Dualcore (4th gen) versions
- DirectX 11, OpenGL 4, three independent outputs
- USB 3.0, SATA 6Gbit/s, 3x Gbit Ethernet/WOL, PCI Express
- Extended Temperature and VITA47 EAC3
Features
| CPU | 5th Gen Intel Core, i7-5700EQ Quad-Core up to 2.6 GHz 4th Gen Intel Core, i5-4410E Dual-Core 2.9 GHz 4th Gen Intel Core, i3-4112E Dual-Core 1.8 GHz |
| DRAM | Up to 16 GByte DDR3L 1600 MHz (2x SODIMM's), with ECC |
| Chipset | QM87 |
| 4HP Version | 2x Gigabit Ethernet, CRT, 2x USB 2.0, LEDs |
| Ethernet | Up to 3x 1000Base-Tx, 2x front/rear switchable with WOL (Wake-On-LAN) support, 1x via Extension CP3004-HDD |
| Flash Disk | SATA NAND Flash Module, up to 32GB |
| Graphics | Intel HD Graphics 5600 integrated (Quad-Core) Intel HD Graphics 4600 integrated (Dual-Core) |
Datasheets
CP3004-SA Datasheet
[ datasheet_cp3004-sa.pdf, 1.88 mb, Sep 24, 2015 ]
Manuals
CP3004-SA User Guide [restrictions apply]
[ 1057-3535_10_sk-man-cp3004-sa.pdf, 4.61 mb, Mar 7, 2016 ]
