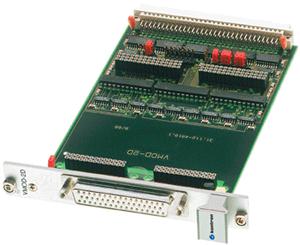

VMOD-2(D) - Kontron
Call for Price / Availability 888.528.9233
- Part:
- VMOD-2(D)
- Manufacturer:
- Kontron
- Description:
- VMOD-2(D) , ModPack Carrier Board for VMEbus
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- Flexible ModPack I/O configuration
- Analog, digital, serial, counter ModPacks
- 2 ModPack interfaces on a 3U board
- 8/16 bit data-bus
- Seperate IRQ lines for each ModPack
- On-board reset facility
- 50-pin D-Sub or 50-pin ribbon-cable connector
- Extended temperature range -40 C to +85 C
Datasheets
Datasheet
[ vmod-2d_datasheet.pdf, 0.19 mb, Nov 27, 2013 ]
Manuals
Manual
[ vmod-2d_manual.pdf, 0.72 mb, Nov 27, 2013 ]
Variants
| PB-ADC3 PB-ADC3 |  | 8 Diff. Ch., Opto-isolated, 12-bit A/D ModPack | more |
| PB-CNT2 PB-CNT2 |  | 3 Opto-isolated channel, 24-bit Counter ModPack | more |
| PB-DAC3 PB-DAC3 |  | 4 Channel Opto-isolated 12-bit D/A ModPack | more |
| PB-DIN3 PB-DIN3 |  | 20 Channel Opto-isolated Digital Input ModPack | more |
| PB-DIO3 PB-DIO3 |  | 20 Opto-isol. Channel, Input and Output ModPack | more |
| PB-DOUT2 PB-DOUT2 |  | 16 Channel Optoisolated Digital Output ModPack | more |
| PB-DOUT8 PB-DOUT8 |  | 8 Channel Opto-isolated Digital Output ModPack | �� |
| PB-SIO4A PB-SIO4A |  | Quad Asynchronous Serial RS-422/485 ModPack | more |
| PB-TIM2 PB-TIM2 |  | 3 Opto-isolated Channel, 16+8-bit Timer ModPack | more |
