- Part:
- VX3800
- Manufacturer:
- Kontron
- Description:

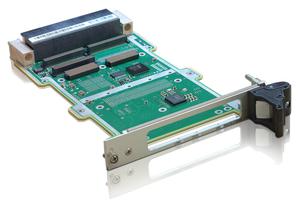

- 3U VPX/VPX-REDI PMC/XMC Carrier Card
- Availability:
- Available: Submit request for datasheets and more information.
VX3800 is a member of Kontron's VITA 46 VPX Ecosystem which facilitates the implementation of VPX through an integrated offering.
Specifications
- x4 or x1 PCI-Express XMC Interface
- 32-bit 66 MHz PCI PMC Interface
- Standard Air- and Rugged Conduction-Cooled Versions
Features
| Dimensions (H x W x D) | 99.85 mm x 162.54 mm. 0.8 inch face plate. (1 inch is a built option) |
| Input Voltage | 5V payload power by default on the VPX backplane for 3U/6U compatibility |
| Interface | PMC: PMC rear I/Os on mezzanine J4 are connected to the VPX P2 connector |
| Temperature | VITA 47-Class AC1 and VITA 47-Class CC4 |
| Operation Temperature | Standard Commercial: 0� to +55�C; Rugged Conduction-Cooled: -40� to +85�C |
| Cooling | Convection or Conduction |
| Supply Voltage | V(I/O) signaling is +3.3V by default. V(I/O) signaling at 5V is a build option |
| Shock | Standard Commercial: 20g/11 ms Half Sine; Rugged Conduction-Cooled: 40g/11 ms Half Sine |
| Humidity | Standard Commercial: 90% without condensation; Rugged Conduction-Cooled: 95% without condensation |
| Vibration | Standard Commercial: 20/500 Hz: 2g; Rugged Conduction-Cooled: 22/2,000 Hz: 2g |
Datasheets
VX3800 datasheet
[ vx3800.pdf, 1.36 mb, Nov 27, 2013 ]
