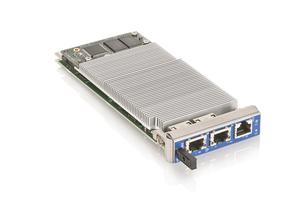

AM4150 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- AM4150
- Manufacturer:
- Kontron
- Description:
- Processor AMC based on Freescale QorIQ P5020
- Availability:
- Available: Submit request for datasheets and more information.
The AM4150 provides flexible configuration of high-speed fabrics. On AMC ports 4-7, 4xSERDES lines can be configured either as PCI Express (root complex or end point) or Serial Rapid IO (host or agent). AMC ports 8-11may be configured either for Serial Rapid IO or PCI Express or up to 3x GbE. In addition, the Kontron AM4150 supports three Gigabit Ethernet channels. Either 2x GbE on AMC ports 0,1 plus 1x GbE at the front or 2xGbE at the front and port 0 on the backplane.
Specifications
- Dual-Core P5020/64 bit up to 2.2 GHz
- Up to 8 GB fast dual-channel ECC DDR3
- Up to 5x GbE, 2x PCIe x4 or 2x sRIO x4 (1.3/2.1)
- SATA to Backplane and onboard Flash Module (max. 32 GB)
- Useable in managed (with MCH) and unmanaged (without MCH) systems
- Freescale longevity program: min. 10 years
Datasheets
Datasheet AM4150
[ datasheet_am4150.pdf, 0.96 mb, Jan 22, 2016 ]
Datasheet for the Linux BSP D0C01
[ datasheet_lin_bsp_d0c01_am4150.pdf, 0.87 mb, Jan 22, 2016 ]
Datasheet Wind River VxWorks BSP for D0C01 platform
[ dat_vxw69_bsp_d0c01_r10_01.pdf, 0.95 mb, Nov 5, 2014 ]
Manuals
AM4150 User Manual [restrictions apply]
[ 1051-5040_20_sk-man-am4150.pdf, 0.91 mb, Nov 27, 2013 ]
AM4150 Introduction Manual
[ 1051-5040_20_sk-man-am4150_introduction.pdf, 0.34 mb, Nov 27, 2013 ]
AM4150 IPMI Firmware User Manual
[ 1052-5679_10_sk-man-am4150-ipmi-fw.pdf, 0.28 mb, Nov 27, 2013 ]
AM4150 U-Boot Bootloader User Manual
[ 1052-5678_10_sk-man-am4150-u-boot.pdf, 0.19 mb, Nov 27, 2013 ]
