AM4520 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- AM4520
- Manufacturer:
- Kontron
- Description:
- AM4520 AdvancedMC SAS Module - Full-Size / Mid-Size
- Availability:
- Available: Submit request for datasheets and more information.
AdvancedTCA platforms designed for multiple applications in the wireless / wireline network infrastructure.

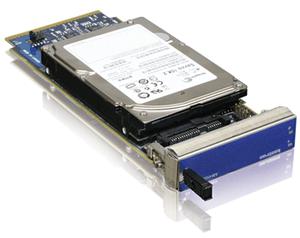

The Kontron AM4520 AdvancedMC SAS module is the ideal high performance, highly reliable storage media for open modular communications solutions that need to achieve higher IOPs (input/output per second) performance in space-constrained network infrastructures. Available in either Mid-Size or Full-Size formfactors, the Kontron AM4520 SAS module offers up to 146 GByte storage capacity.
Built in accordance to the AMC.0* and AMC.3 specifications,
the AM4520 features a 10,000 rpm spindle plus the industry۪s highest reliability of 1.4M hours MTBF.
As a hot-swappable field replaceable unit (FRU), the AM4520 also follows the same stringent carrier grade RASM feature set, namely - Reliability, Availability, Serviceability, Maintainability. When integrated with AdvancedTCA platforms, the AM4520 SAS module helps conserve valuable system AdvancedTCA system slots, ensuring greater economies of scale and reduced OPEX.
Specifications
- Full-Size / Mid-Size (AMC.0 Rev 2.0*)
- AMC.3 compliant
- Up to 146 GB capacity
- 10,000 rpm, 4.1ms average seek time
- 8-Mbyte cache buffer for improved performance
- S.M.A.R.T. technology capable
- Management through IPMI
- 1.5 implementation
- Power On Hour (POH) IPMI counter support to diagnose disk usage in terms of number of hours
- * Mid-Size version height exceeds component envelope as outlined in the AMC.0 R 2.0 specification.
Features
| Interface | SAS |
| Capacity | 76 GByte or 143 GByte |
| Form Factor | Full-size or mid-size |
| Access | 10,000 RPM, avg seek time 4.1ms |
| Characteristics | 24 hours / 7 days operation |
| Compliance | AMC.0 R2.0 / AMC.3 R1.0 |
Datasheets
AM4520
[ am4520_dscs4_1.pdf, 1.18 mb, Jan 29, 2015 ]
Manuals
AM4520 Manual
[ am4520_technical_reference_manual_v1_01.pdf, 0.53 mb, Nov 27, 2013 ]
AM4520 Manual Mid-Size
[ am4520-man-2.2.pdf, 1.78 mb, Nov 27, 2013 ]
