- KTQ87/mITX
- Manufacturer:
- Kontron
- Description:
- Embedded Mini-ITX Motherboard with IntelQ87Chipset and 4th Generation Intel 22nm Dual and Quad Core i7/i5/i3, Pentium and Celeron CPUs.
- Availability:
- Available: Submit request for datasheets and more information.

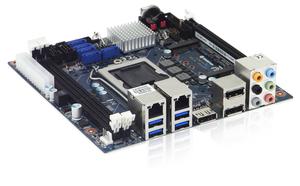

The new embedded Mini-ITX motherboard KTQ87/mITX is based on 4th generation Intel Core i7/i5/i3 processors and the Intel Embedded Q87 chipset. The new motherboard offers engineers leading-edge embedded processing performance as well as up to 4K graphics in a compact ATX-compliant footprint. It provides a 35 percent increase in graphics performance compared to its predecessors and a higher floating-point performance as well as improved data en- and decryption while the thermal footprint has practically remained the same. With these improvements and with the long-term availability as well as the high-quality design, the Kontron KTQ87/mITX sets a new benchmark for all mid-range to high-performance embedded applications in markets such as industrial automation, medical, gaming and digital signage.
With the Mini-ITX form factor engineers can immediately launch into developing system designs based on the broad, ATX-compliant ecosystem. The high-quality design of the Kontron embedded motherboards with features such as solid capacitors (POSCAP) additionally improves application reliability and availability in the field - even in the harshest of environments.
The Kontron KTQ87/mITX embedded Mini-ITX motherboard is based on the Intel Q87 Express chipset and supports up to 16 gigabytes of DDR3 RAM. It can be equipped either with dual-core or quad-core 4th generation Intel Core i3/i5/i7 processors with up to 3.1 GHz (3.9 GHz for Turbo Boost). For application-specific extension cards it offers one PCI Express Gen 3.0 slot as well as one Mini-PCIe. Further peripherals can be connected via four SuperSpeed USB (USB 3.0) and ten USB 2.0 ports.
The Kontron- specific embedded feature connector offers up to 160 GPIO, analog-to-digital converter (ADC) and digital-to-analog converter (DAC) minimizing the BOM and design-in efforts for individual I/O functionality. Complementary, Kontron offers the KT Evaluation Breakout Board, which further simplifies and accelerates system designs by providing direct access to features such as system monitoring, case-open sensing, thermal system management and much more via the feature connector. The embedded motherboard supports up to three independent hi-res displays or a 4K display which are connected via DisplayPort++. This enables direct connection of DisplayPort 1.2 panels and HDMI/DVI monitors with adapter cables. Besides the hi-res support, it also features hardware acceleration to dynamically improve video quality and it further supports stereoscopic 3D, adding another dimension to applications such as digital signage, gaming and entertainment. Two GbE LAN �� one with Intel AMT 9.0 �� allow for extended networking options and out-of-band management, minimizing the need for on-site maintenance. A wide range of storage media can be connected via six SATA interfaces with 1.5/3/6 Gbit/s and RAID 0/1/5/10 functionality plus the mSATA (mini-SATA) socket for state-of-the-art, on-board SSD. HD audio, two COM ports and a Trusted Platform Module 1.2 for safety-related applications top off the feature set of the new motherboards.
The boards supports Windows 7 and 8, Windows Embedded Standard 7 and 8, VxWorks, as well as several Linux distributions (Red Hat Enterprise, Novell SuSE Linux Enterprise, Red Flag Linux and Wind River Linux, among others).
Specifications
- 4th Generation Intel 22nm Dual and Quad Core i7, i5, i3, Pentium & Celeron CPUs with Intel Q87 Lynx Point PCH
- Long term available Embedded mITX motherboard
- High performance CPU, graphics, and media performance supporting 3 independent displays pipes
- Graphics APIs DirectX 11.1, OpenGL 4.x, OpenCL 1.2
- 3x Display Port for fl exible, high resolution display drive
- 2x DDR3L/DDR3 DIMM sockets supporting up to 16GB DDR3 Memory
- 2 x Intel Gigabit-LAN
- 5x serialATA 6Gbit/s
- AMT 9.0 support
- 1 x mPCIe, 1 x mSATA
- TPM 1.2
- Kontron embedded feature connector with ADC, DAC up to 160 GPIO
Features
| Form Factor | Mini-ITX |
| Dimensions (H x W x D) | 6.7� x 6.7� (17,0 cm x 17,0 cm |
| CPU | Supports: 4th Generation Intel 22nm Dual and Quad Core i7, i5, i3,Pentium & Celeron CPU Intel Core i5-4570S GT2 2.9Ghz, 65W Intel Core i7-4770S GT2 3.1Ghz, 65W Intel Core i3-4330 GT2 3.5GHz, 54W Intel Pentium-3420 GT1 3.2GHz, 54W Intel Celeron-G1820TE GT1 2.2GHz, 35W |
| Chipset | Intel Q87 |
| Main Memory | Up to 16 GB DDR3 (max. 2x 8 GB) |
| Front Side Bus | Up to 20 GB/s point-to-point DMI 2.0 interface to PCH Four lanes in each direction |
| Graphics Controller | Intel HD Graphics 4600 integrated GT1 or GT2 depending on CPU type |
| Graphics | 3x Display Port (1x PCIe x16) |
| Ethernet Controller | 1x Intel Clarkville i218LM (with AMT 9.0 support) 1x Intel Pearsonville i211AT |
| Ethernet | 2x Intel GB LAN (1x AMT 9.0 support) |
| Hard Disk | 5 x SATA (SATA 150/300/600) w. RAID 0,1,5,10 support 1x mSATA (w. USB, LPC) |
| Parallel Port | n/a |
| PCI | n/a |
| PCI Express / PCI support | 1x PCIe x16 |
| Mini-PCI | 1x mini-PCI Express (w. USB) |
| USB | 4x USB 3.0/2.0 6x USB 2.0 |
| IEEE 1394 Firewire | n/a |
| Serial | 2x RS232 |
| Rear I/O | 4x USB 3.0/2.0 3x Display port 2x RJ45 LAN 2x3 mini Audio Jack tower |
| Audio Controller | VT1708S HD Audio 7.1 channel surround sound |
| Keyboard | n/a |
| Special Features | DAC up to 160 GPIO TPM KT embedded feature port with ADC Intel AES security ATX power supply only! |
| BIOS | Phoenix |
| Power Management | ACPI 3.0 |
| Operation Temperature | 0�C to 60�C (32�F to 140�F) |
| Operating System | Win7, WES7 32/64bit, Win8, WES8 Linux VxWorks |
| Compliance | EN 61000-4-2:2000 ESD Immunity EN55022:1998 class B Generic Emission Standard IEC 60950-1: 2005, 2nd Edition UL 60950-1 CSA C22.2 No. 60950-1 IEC 60068-2-27 IEC 60068-2-29 IEC 60068-2-64 ROHS |
Datasheets
Datasheet KTQ87/mITX
[ ktq87-mitx.pdf, 1.08 mb, May 18, 2016 ]
Manuals
KTD-N0882 KTQ87 Users Guide
[ ktd-n0882-j_ktq87---kth81-users-guide.pdf, 4.73 mb, May 17, 2016 ]
Tech Spec Sheet
Tech Specs MINI-ITX
[ tech-spec_mini-itx.pdf, 0.52 mb, Feb 29, 2016 ]
Variants
| KTQ87/mITX 810580-4500 | | Embedded Mini-ITX Motherboard with IntelQ87Chipset and 4th Generation Intel 22nm Dual and Quad Core i7/i5/i3, Pentium and Celeron CPUs. | more |
| Intel Celeron-1820 1056-0044 |  | Intel Celeron-1820 GT1 TBD 2C 2M LGA1150 35W | � |
| Intel Pentium-3420 1055-5249 | | Intel Pentium-3420 GT1 3.2GHz, 2C 3MB, 54W, LGA1150 | � |
| Intel Core i3-4330 1055-5247 | | Intel Core i3-4330 GT2 3.5GHz, 3C 4MB, 54W, LGA1150 | � |
| Intel Core i5-4570S 1054-9757 | | Intel Core i5-4570S, 3.60 GHz, quad Core, 6MB Cache, 65W, FCLGA1150, Embedded | � |
| Intel Core i7-4770S 1054-9752 | | Intel Core i7-4770S, 3.90 GHz, quad Core, 8MB Cache, 65W, FCLGA1150, Embedded | � |
Accessories
| DDR3-1600 DIMM 2GB 1060-2498 | | DDR3, 2GB, 240P, 1600MHZ, PC3-12800 DIMM | � |
| DDR3-1600 DIMM 4GB 1060-2500 | | DDR3, 4GB, 240P, 1600MHZ, PC3-12800 DIMM | � |
| DDR3-1600 DIMM 8GB 1060-2488 | | DDR3, 8GB, 240p, 1600MHZ, PC3-12800 DIMM | � |
| DDR3-1333 DIMM 1GB ECC 1060-2476 | | DDR3, 1GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1333 DIMM 2GB 1060-2492 | | DDR3, 2GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1333 DIMM 8GB 1060-2496 | | DDR3, 8GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1333 DIMM 4GB 1060-2494 | | DDR3, 4GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| Active Cooler for KTQ67/ KTQ77 / KTQ87/ KTH81 1046-6305 |  | Active Cooler for Socket H2 (LGA1155) ZIF Socket CPU | more |
| LGA775 Cooler for KT965-, KTQ45- and KTG41-family 823141 |  | Socket775 Active Cooler for the KTQ45, KTG41& KT965 family of Motherboards | more |
| Cable COM2 100mm Bracket 821036 | | Cable COM2 100mm Bracket | more |
| LDI (Large Display Interface) Evaluation Kit 820971 |  | LDI Evaluation Kit contains of:820975 LDI module,821521 Evaluation Cable Kit and1027-3591 LVDS Cable 2x40p conn 405 mm | more |
| Accessory kit for KTQ87, KTH81 826602 | | 2x COM cable (2.54mm, 100mm), 1x Feature 44pol 1 to 1 cable (300mm), 1x Front Panel Open-End cable, 5x SATA cable (500mm), 2x Cable+Bracket (USB, 10poled), SW Man&Driver CD | � |
| LVDS Connector for cable 910000005 |  | LVDS Connector for cable | more |
