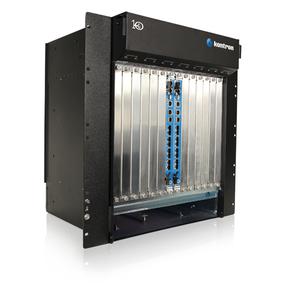

OM9141-10G - Kontron
Call for Price / Availability 888.528.9233
- Part:
- OM9141-10G
- Manufacturer:
- Kontron
- Description:
- 10G Open Modular Core Platform
- Availability:
- Available: Submit request for datasheets and more information.
basic platform building block to provide an ATCA
infrastructure as per the PICMG specification and is the
foundation for pre-integrated carrier grade systems.
A core ATCA-built infrastructure enables Telecom
Equipment Manufacturers (TEMS) to take full
advantage of the ATCA eco-system and enjoy the
freedom of choice to build dedicated platforms for
wireless and wireline applications.
A pre-integrated Open Modular Core
platform saves the Telecom Equipment Manufacturer
significant development time and resources by
using standard based hardware and integrated data
transport and management functionalities. Platform
thermal pre-qualification according to standardbased
guidance, such as CP-TA B.4, ensures thermal
interoperability and the flexibility to create different
platform configurations of CPU, NPU, DSP storage or
even specialized and custom ATCA based line cards that
meet the requirements for 3G/4G, LTE, WIMAX, GPON
and IP-TV network elements.
Typical applications to build systems based on the
OM9140��10G Open Modular Core platform include
but are not limited to:
�3G/4G and LTE Network Elements
�GPON/EPON and Optical Transport Network
Elements
�QoS and Test Platform Network Elements
Service and Content Delivery platforms
with Security and DPI functionality
Also included is redundant Shelf Management with
interoperability-tested Shelf Manager Cross Connects
as per PICMG specification, and optional systems
management functionality based on the COMexpress
form factor �� 25GB and 50GB SATA MO-297
or 16GB eUSB system management storage option
�� which resides on the AT8910 for centralized system
management. A Telco Alarm panel provides telecom
grade external system alarm notification.
Specifications
- Chassis/ mechanical, power and cooling
- Data Transport for Base and Fabric interconnectivity
- Platform Manageability such as Shelf
- Management and System Management with a standard-based HPI implementation
- Open Modular Core Platform interoperability
- Based on PICMG 3.0 and PICMG 3.1 with support for 1, 10 and 40GbE support.
- 13U high, 19� with brackets for 19� equipment practice
- 12 available slots for Node Blades and RTMs
- Front to rear cooling supports 300W per slot plus 35W per RTM
- 4x hot-swappable fans
- Front pluggable Air Filter with redundant presence sensor
- Redundant DC Power Entry Module (PEM) with Fuse failure and reverse voltage indicator for -40 to -72V DC
- Redundant Shelf Field Replaceable Unit with data boards with Telco Alarm
- Redundant, hot swappable Shelf Manager with RS232 and Ethernet front access (single Shelf Manager operation support)
Datasheets
OM9141-10G
[ datasheet_om9141-10g-dscs4.pdf, 1.17 mb, Sep 28, 2015 ]
