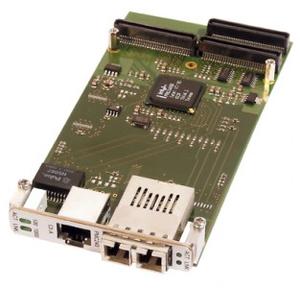

PMC240 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- PMC240
- Manufacturer:
- Kontron
- Description:
- PMC Gigabit Ethernet Controller
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- 32/64-bit, 33/66 MHz PCI and/or 66/133 MHz PCI-X operation PMC Module
- 2 independent Gigabit Ethernet channels
- Copper and/or optical transmissions supported
- Auto detect of 10 Base-T,100 Base-TX or 1000 Base-T in copper network configurations
- 1000 Base-SX optical transmissions over SC-type connector technology
Features
| Frontpanel | 2x RJ45: 2x copper, 1x RJ45 and 1x SC-Type connector for mixture |
| Function | 2x independent Gigabit Ethernet channels |
| Data Rate | Copper: 10 Base-T, 100Base-Tx, 1000Base-T, Fiber: 1000Base-SX |
| Signals | Copper, or mixture copper and fiber |
| FIFO | 2x 64 KByte (configurable) |
| Controller | Intel 82546GB |
Datasheets
Datasheet
[ ds_pmc240_feb12.pdf, 0.86 mb, Jan 8, 2015 ]
Manuals
Manual PMC240
[ pmc240_manual.pdf, 0.34 mb, Nov 27, 2013 ]
Manual PMC240 Errata 1
[ 25270_01_pmc240_errata_1.pdf, 0.02 mb, Nov 27, 2013 ]
Variants
| CP390 CP390 |  | 3U CompactPCI PMC Carrier for one PMC module | more |
