Graphics Adapter - Kontron
Call for Price / Availability 888.528.9233
- Part:
- Graphics Adapter
- Manufacturer:
- Kontron
- Description:
- Throughout the complete Graphics Chain
- Availability:
- Available: Submit request for datasheets and more information.
Approved schemactics available
Kontron's reference schematics are available and as soon as you have found the right combination of module and graphic adapter, you just need to request the required schematics. The developer just need to integrate a fully tested schematic into his customized solution.
Parallel software development
While hardware developers still work on layout and schematics, software developers can already start their development early with an instant prototype.
How to select an adapter?
Please consult the selction matrix (datasheet) or Kontron Support to get help how to select the right adapter for your Kontron Computer-on-Module.
Manuals and Schematics
Please log into Kontron's EMD customer section to download manuals and schematics.
Specifications
- Accelerate and simplify development
- Flexibility for your solution
- Instant prototyping
- Embedded Grahpics Success with Kontron
Datasheets

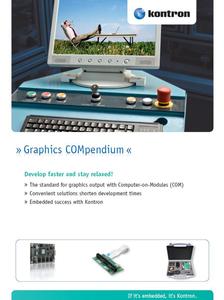

Graphics Adapter Selection Matrix
[ graphics_comp_en_0611_web.pdf, 1.44 mb, Nov 27, 2013 ]
Variants

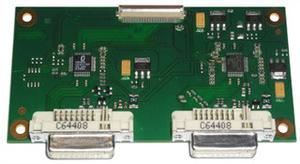

| ADA-SDVOB-FC5 96006-0000-00-5 |  | SDVO-to-DVI-D Adaptor | � |
| ADA-LVDS-DVI 18Bit 9-5000-0352 |  | 18bit LVDS (JILI) to DVI-D, including the flatfoil cable | � |

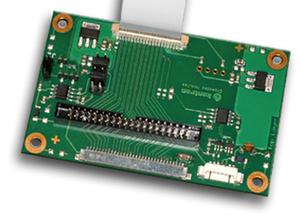

| KAB-ADAPT-LVDS 61032 |  | Evaluation Board to adapt LVDS flatpanels via JILI cable. | more |
| ADA-COMe-T10-T2 34120-0000-00-2 | | COM Express Adapter to connect T10 modules to T2 carrier boards | � |
| ADA-COMeType1-FFC30 34120-0000-00-1 | | Adapter to route SDVO signals to flat foil cable with 30 pins. | � |
| ADA-SDVO30-DVI 34121-0000-00-0 | | Convert SDVO from FFC (30 pins) to DVI-D (on DVI plug). | � |
Warranty
10-Day Inspection Period: If the Graphics Adapter purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.
30-Day Warranty: The 30-Day warranty for Graphics Adapter covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:
1. Repair
2. Replacement
3. Refund
** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**
All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.
Warranty Options:
Our Standard Warranty: Warranty may vary dependent on product and manufacturer.
No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.
Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
